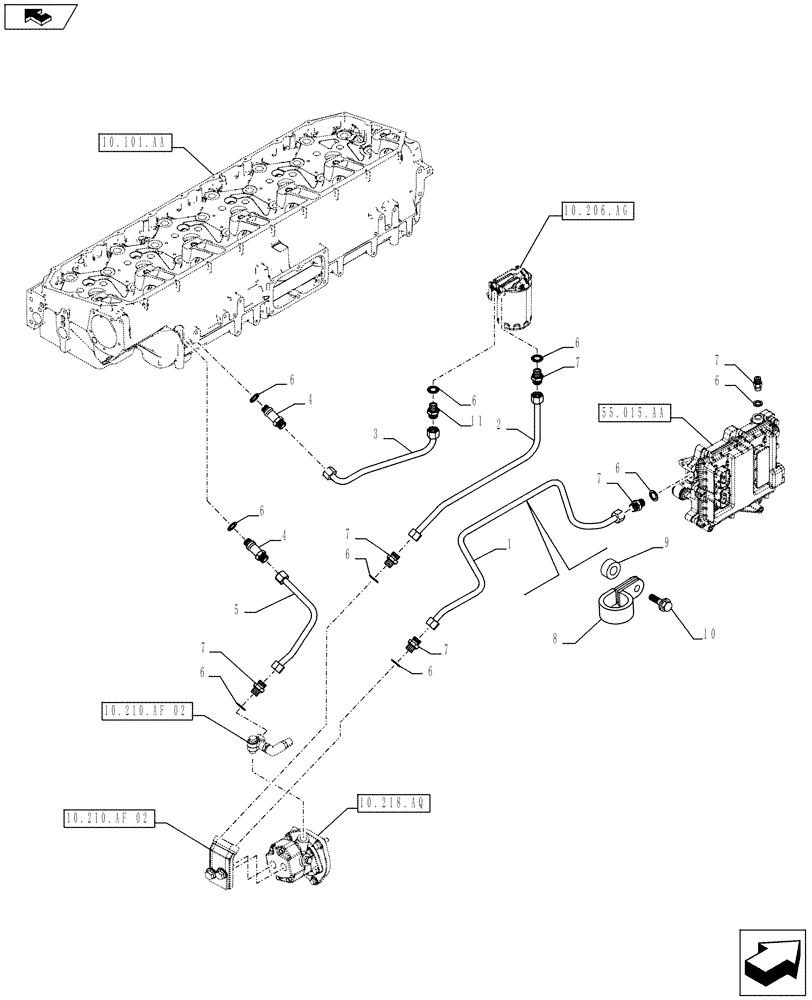

Запчасти Case IH F3CE0684E E920 (10.210.AF[01]) - FUEL LINE (10) - ENGINE

1

500313907

RIGID TUBE

Fuel Line to Fuel Pump

1шт.

2

500352450

RIGID TUBE

Fuel Line to Filter

1шт.

3

504056124

PIPE

Fuel Line

1шт.

4

500310076

FITTING

M16 x 1.5 - M18 x 1.5

2шт.

5

500352447

RIGID TUBE

1шт.

6

99489019

SEALING WASHER

D=16 x 24 x 1.5 mm

9шт.

7

504081274

HYD CONNECTOR

M16 x 1.5 - M18 x 1.5

7шт.

8

17316592

COLLAR

2шт.

9

13605711

SPACER

2шт.

10

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 25 mm

2шт.

11

41031569

FITTING

M16 x 1.5 - M18 x 1.5

1шт.
