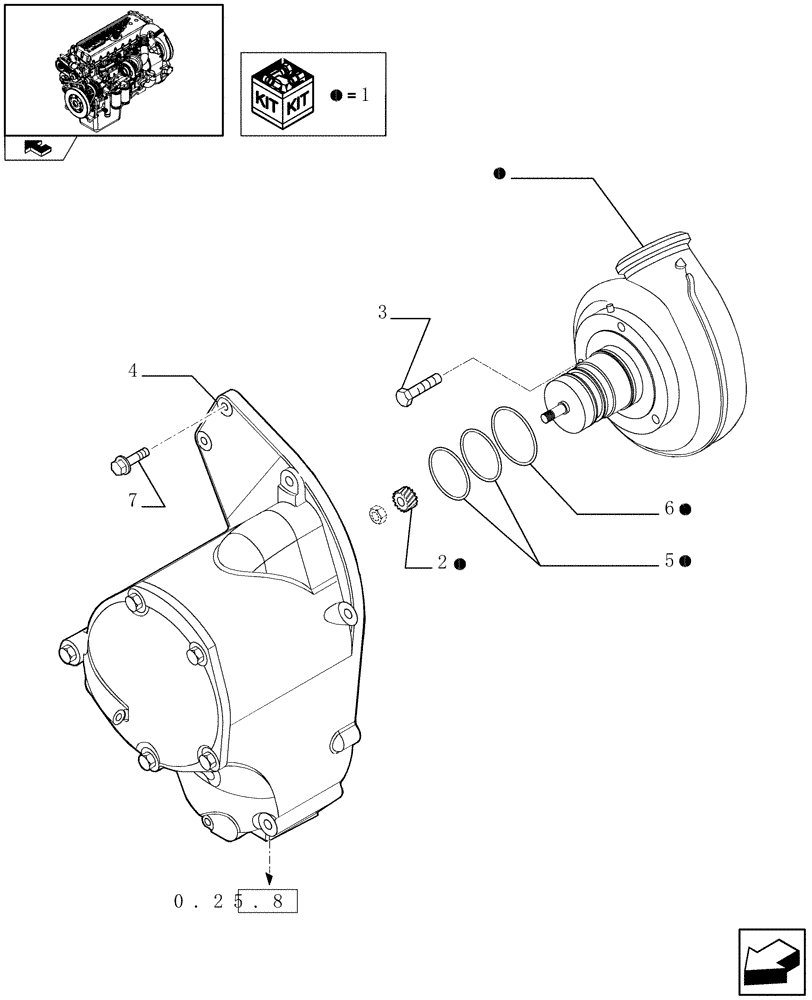

Запчасти Case IH F3CE0684E E004 (0.25.4) - HYDRAULIC COUPLING AND POWER TURBINE - TURBOCOMPOUND (504292934-504227236)

1

504271280

TURBOCHARGER

- ASSY

1шт.

1

504371041R

REMAN-TURBOCHARGER

Assy

1шт.

1

504371041C

CORE-TURBOCHARGER

Return Part Number

1шт.

2

504170759

GEAR

1шт.

3

16676434

M10X50 mm

2шт.

3

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

4

504168203

PTO

- ASSY

1шт.

4

504346152R

REMAN-CLUTCH ASSY

Reman for New PN 504168203

1шт.

4

504346152C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

5

70931290

O-RING,-231, Cl 8, 2.609" ID x .139" Thk

D. 66,27 mm SP=3,53 mm

2шт.

6

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

D. 78,97X3,53 mm

1шт.

7

16593025

SCREW,M10 x 90mm

2шт.

7

16592925

SCREW,M10 x 1.5 x 80mm

M10x80 mm

1шт.

7

16593125

BOLT,M10 x 100mm

M10 x 100

2шт.

7

16599325

SCREW,M10 x 150mm

M10x150 mm

2шт.
