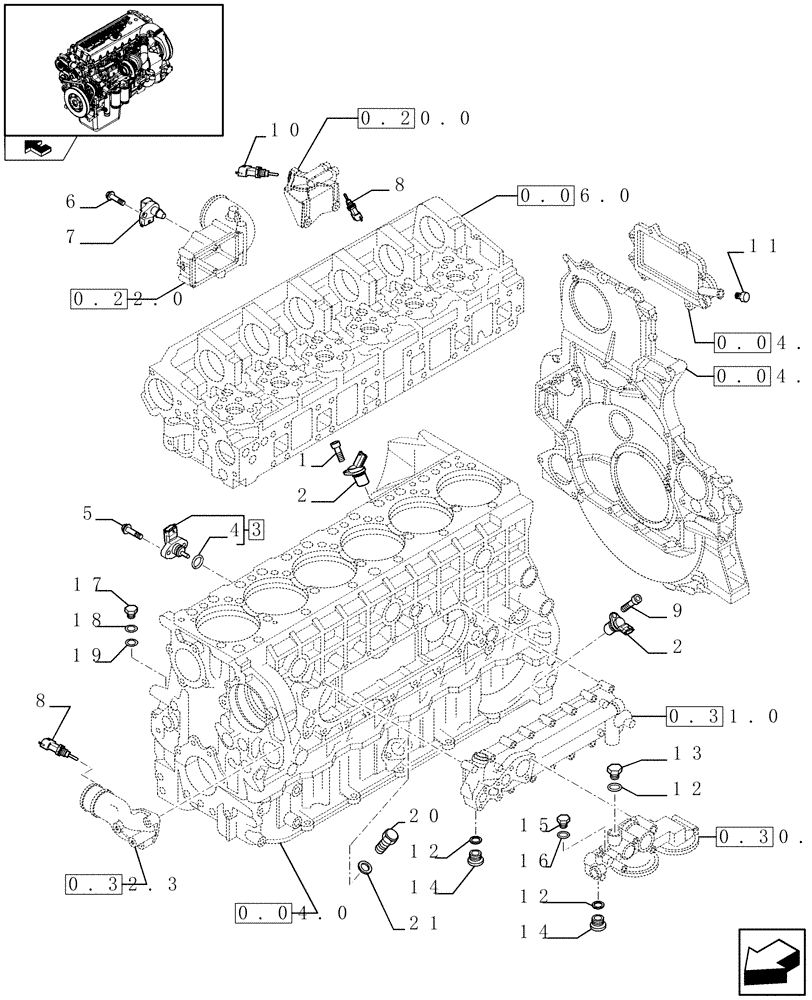

Запчасти Case IH F3CE0684E E004 (0.17.1) - MOTOR SENSORS (504228090 - 504210473 - 504236504)

1

16689024

SCREW,M16 x 12mm

M6 x 12

1шт.

2

504096645

TRANSMITTER

Camshaft & Crankshaft, 2 wire

2шт.

3

4890193

SENSOR

Oil press. & temperature

1шт.

4

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

5

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

6

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

7

504073323

SENSOR

Air press. & temperature, 4 wire

1шт.

8

82017881

SENSOR

Press. & Temperature

2шт.

9

16689124

SCREW,M6 x 16mm

1шт.

10

500346074

SENDER UNIT

Pressure

1шт.

11

98472271

PLUG

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D. 14x22 mm SP=1,5 mm

3шт.

13

504084571

PLUG

1шт.

14

16992311

PLUG

M14x1,5

2шт.

15

10300714

PLUG,M16 x 1.5 x 14

M16 x 1.5

1шт.

16

99489019

SEALING WASHER

D. 16x24 mm SP=1,5 mm

1шт.

17

16887515

PLUG

1шт.

18

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

D. 12x20 mm SP=1,5 mm

1шт.

19

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

M7.65 x 1.78

1шт.

20

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

21

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.
