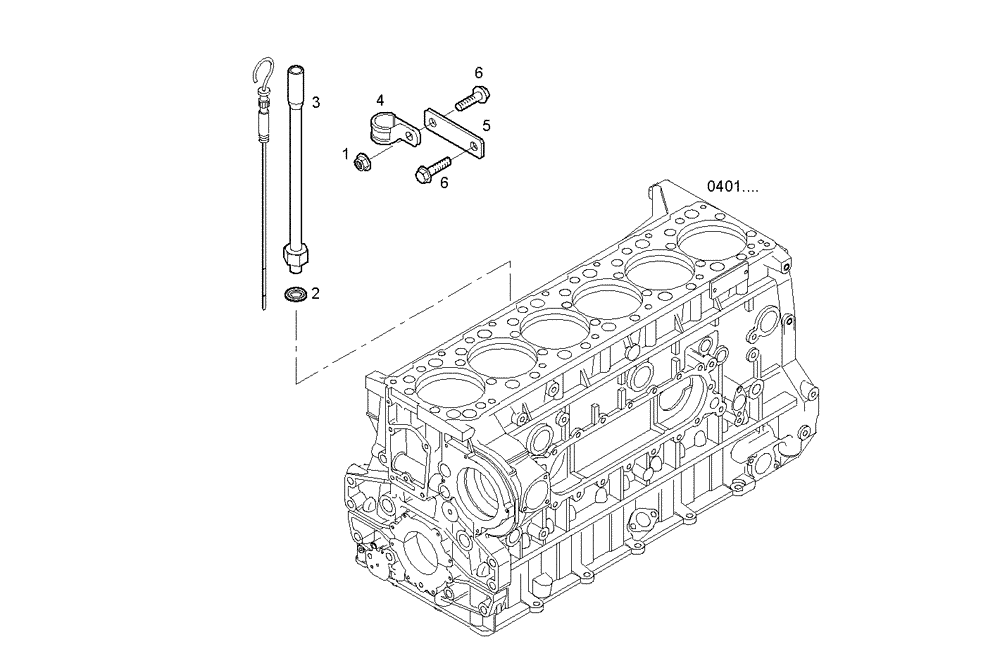

Запчасти Case IH F3CE0684E E004 (2712.029) - OIL DIPSTICK PIPE

1

2852389

FLANGE NUT

HEXAGON NUT, M8

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

1шт.

3

504117954

TUBE

OIL LEVEL TUBE

1шт.

4

17316699

CLAMP

PIPE CLIP, dia=14 MM

1шт.

5

504066745

BRACKET

RETAINER

1шт.

6

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM

2шт.
