Запчасти Case IH F3CE0684A E001 (0432.035) - REAR C.CASE COVER

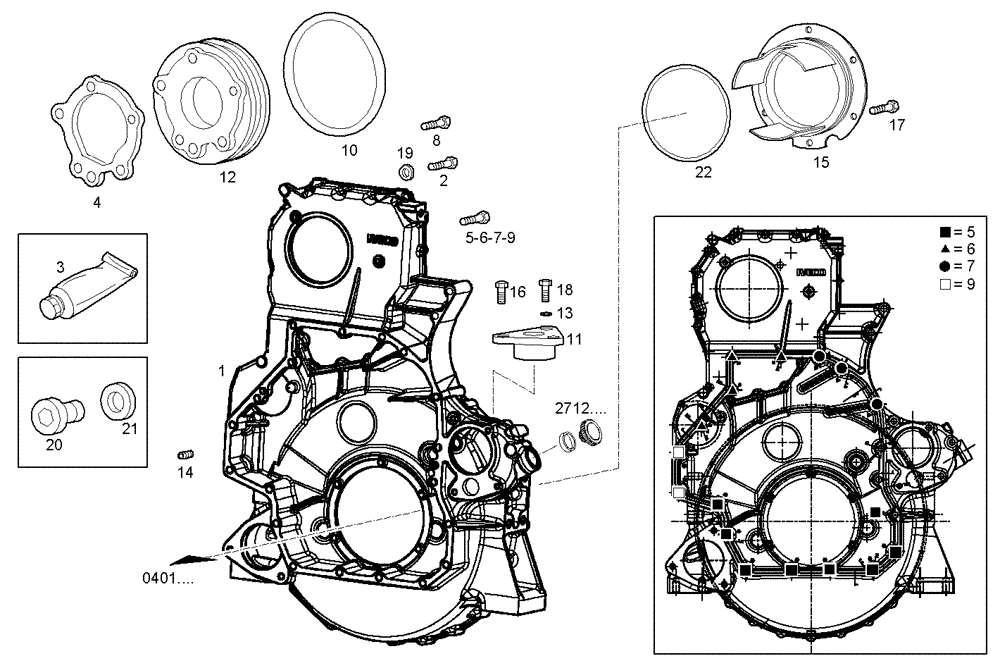

Схема запчастей Case IH F3CE0684A E001 - (0432.035) - REAR C.CASE COVER

Артикул

Название

Примечание

Количество

1

504179141

HOUSING

TIMINGGEAR HOUSIN

1шт.

2

16675835

SCREW,M10 x 30mm

HEXAGON BOLT, M10X30 MM

2шт.

3

2995644

SEALANT

ADHESIVE/STICKER

1шт.

4

99448739

GASKET

FLAT ENGINE GASKET

1шт.

5

16593425

BOLT,M12 x 100mm

HEXAGON BOLT, M12X100 MM

8шт.

6

16588125

BOLT,M12 x 1.75 x 35mm

HEXAGON BOLT, M12X35 MM

4шт.

7

16593625

BOLT,M12 x 1.75 x 120mm

HEXAGON BOLT, M12X120 MM

3шт.

8

16693924

BOLT

CYLIND-HEAD SCREW, M12X35MM

1шт.

9

16588825

BOLT,M12 x 70mm

HEXAGON BOLT, M12X1,25X70 MM

2шт.

10

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

O-RING, dia=129,8 MM SP=3,53 MM

1шт.

11

504168296

FLANGE

CONNECTING PLATE

1шт.

12

500322294

PLATE

SPACER RING

1шт.

13

98474305

SEALING WASHER

WASHER, dia=10X17 MM SP=2,3

2шт.

14

10839810

DOWEL,12mm OD x 18mm L

DOWEL PIN

1шт.

15

504224804

COVER

COVER

1шт.

16

2852323

SCREW,M8 x 1.25 x 14mm

HEXAGON BOLT, M8X14 MM

2шт.

17

16585625

SCREW,Hex, M6 x 12mm

HEXAGON BOLT, M6X12

6шт.

18

504087515

SCREW

SHEAR SCREW

1шт.

19

16892924

WASHER

WASHER

1шт.

20

16991915

PLUG

THREADED PLUG, M24X1,5

2шт.

21

99489023

LOCK WASHER

SPRING WASHER, D=24X33X1,5

2шт.

22

17293681

O-RING

O-RING

1шт.

Выбрано товаров: 22
