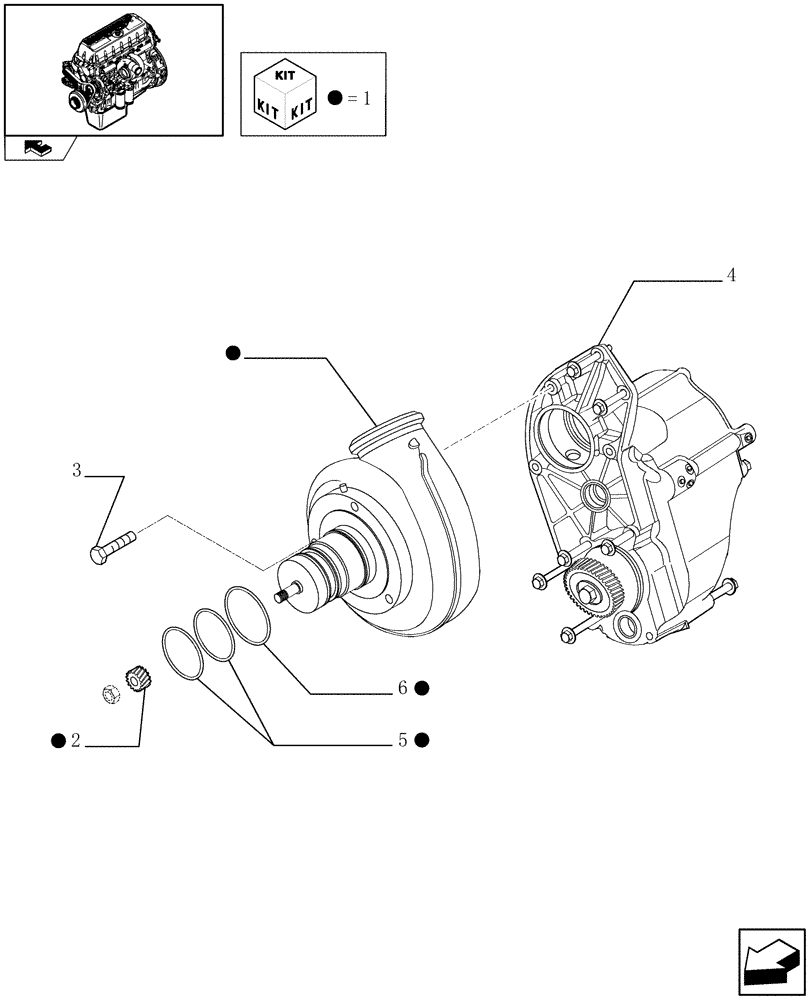

Запчасти Case IH F3CE0684A E001 (0.25.4) - HYDRAULIC COUPLING AND POWER TURBINE - TURBOCOMPOUND (504168203-504227236)

1

504005338

TURBOCHARGER

- ASSY

1шт.

1

5801562063R

REMAN-TURBOCHARGER

Assy

1шт.

1

5801562063C

CORE-TURBOCHARGER

Return Part Number

1шт.

2

504170759

GEAR

1шт.

3

16587625

BOLT,M10 x 50mm

M10X50 mm

2шт.

3

16676734

SCREW

1шт.

4

504168203

PTO

- ASSY

1шт.

4

504346152R

REMAN-CLUTCH ASSY

Reman for New PN 504168203

1шт.

4

504346152C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

5

70931290

O-RING,-231, Cl 8, 2.609" ID x .139" Thk

D. 66,27 mm SP=3,53 mm

2шт.

6

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

D. 78,97X3,53 mm

1шт.
