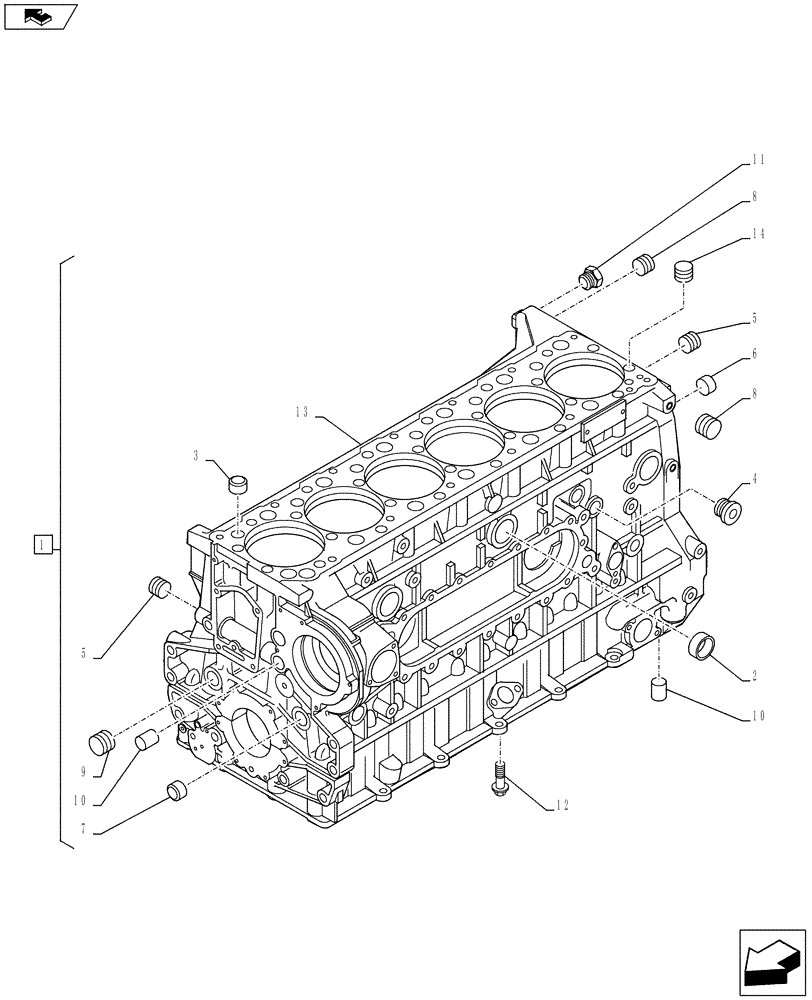

Запчасти Case IH F3BFE613E A015 (10.001.AB[01]) - CRANKCASE (10) - ENGINE

1

504105812

CYLINDER BLOCK,6 Cylinders

ASSY, Incl 2 - 14

1шт.

2

16991370

PLUG

D = 45 mm

2шт.

3

98472271

PLUG

1шт.

4

504120669

PLUG

M24 x 1.5

1шт.

4

504051237

PLUG

D = 1/4

1шт.

4

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

M12 x 1.25

2шт.

5

504051238

PLUG,Threaded, 3/8" Dia

D = 3/8

3шт.

6

500368916

DOWEL

D = 10 x 25 mm

1шт.

7

16990870

PLUG

D = 28 mm

3шт.

8

504138062

PLUG

D = 10 mm

2шт.

9

16990670

PLUG,Lock, 22mm Dia

D = 22 mm

6шт.

10

99467554

DOWEL

D = 14 mm

4шт.

11

99433597

SCREW

M12 x 16

3шт.

12

504108192

SCREW,Flng, M18 x 2 x 196mm

M8 x 2x 196

14шт.

12

99432869

SCREW

M12 x 125

25шт.

12

99433863

SCREW

M12 x 58

1шт.

13

NSS

NOT SOLD SEPARAT

Crankcase, Incl in 1

1шт.

14

504051237

PLUG

1шт.
