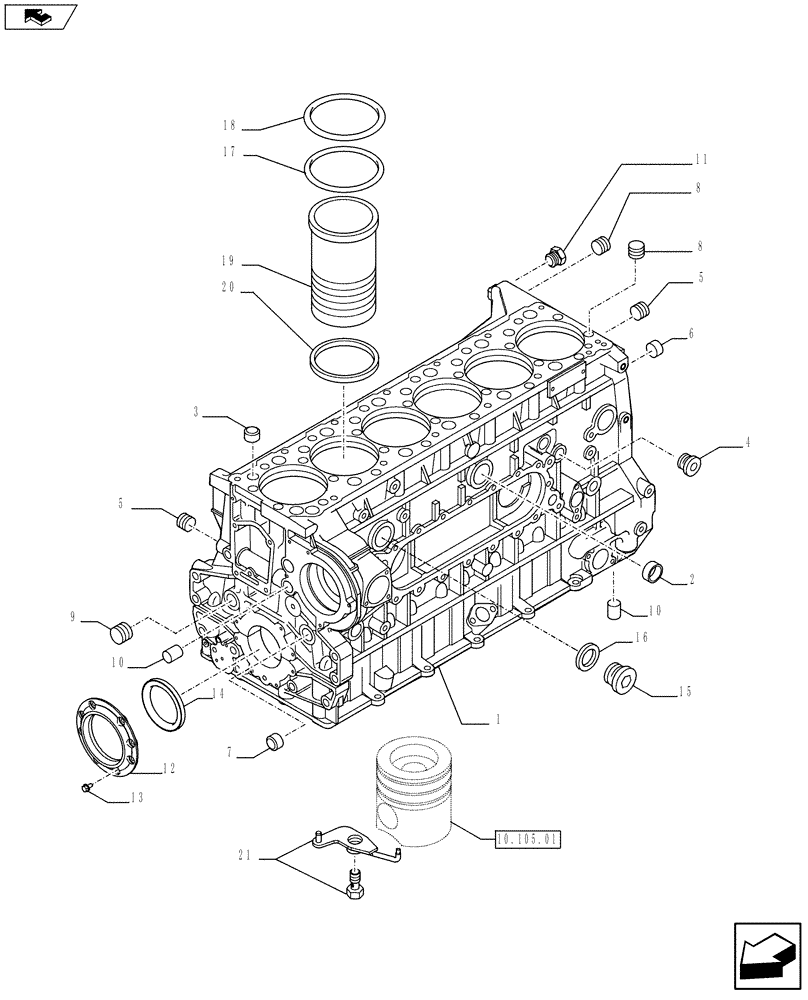

Запчасти Case IH F3BFE613E A007 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504075688-504242485-504114488-504045977) (10) - ENGINE

1

504105812

CYLINDER BLOCK,6 Cylinders

1шт.

2

16991370

PLUG

2шт.

3

98472271

PLUG

1шт.

4

504120669

PLUG

1шт.

4

16992515

PLUG

1шт.

4

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

5

98474481

PLUG

3шт.

6

500368916

DOWEL

1шт.

7

16990870

PLUG

3шт.

8

504138062

PLUG

2шт.

9

16990670

PLUG,Lock, 22mm Dia

6шт.

10

99467554

DOWEL

4шт.

11

99433597

SCREW

3шт.

12

500304671

COVER

1шт.

13

16586225

BOLT,M8 x 16mm

8шт.

14

17292581

SEALING RING

1шт.

15

10300714

PLUG,M16 x 1.5 x 14

1шт.

16

99489019

SEALING WASHER

1шт.

16

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

16

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

17

99455400

SEALING RING

SEALRING

6шт.

18

99455401

SEALING RING

SEALRING

12шт.

19

500337911

LINER, ENGINE CYLIND

6шт.

20

99448193

SHIM,0.08mm Thk

6шт.

20

99448192

SHIM,0.10mm Thk

6шт.

20

99448190

SHIM,0.12mm Thk

6шт.

20

500378983

SHIM,0.14mm Thk

6шт.

21

504356426

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

6шт.
