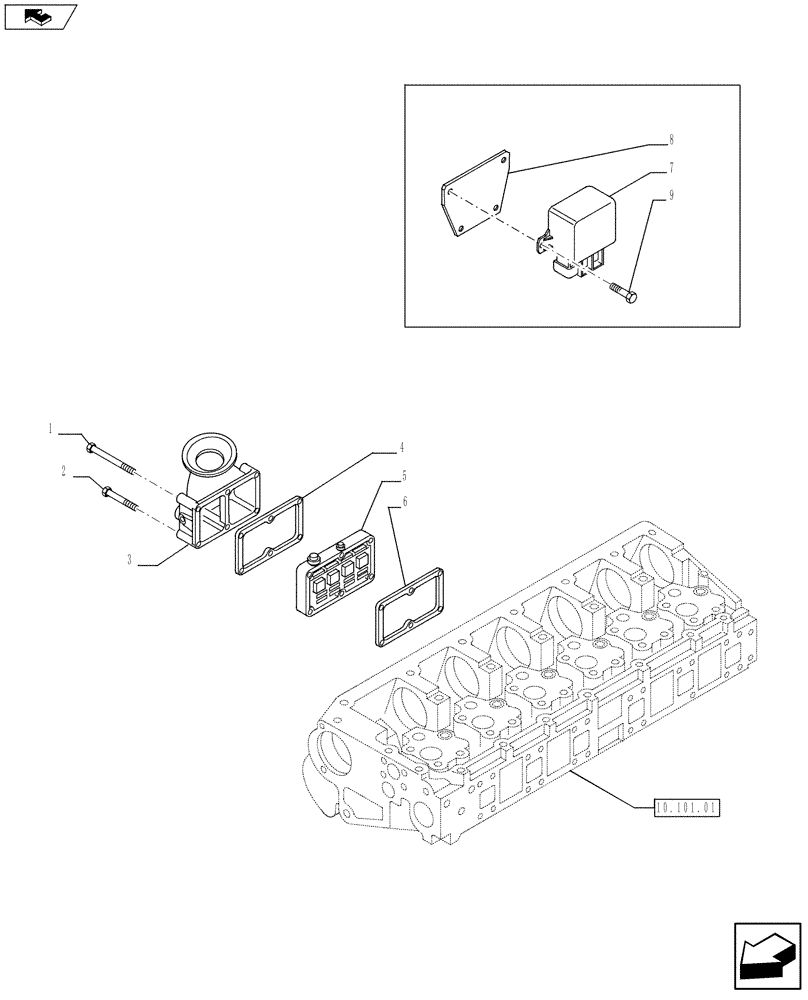

/ / / / / / / / (10.254.01) - INTAKE MANIFOLD (504055366-504093419)
Запчасти Case IH F3BFE613D A004 (10.254.01) - INTAKE MANIFOLD (504055366-504093419) (10) - ENGINE
5
2
3
4
7
8
home
10.101.01
9
1
6
1
16599225
SCREW,M10 x 140mm
4шт.
2
16593125
BOLT,M10 x 100mm
M10 x 100
2шт.
3
504074691
AIR INTAKE TUBE
1шт.
4
504375264
GASKET,0.3mm Thk
1шт.
5
504154987
HEATER
1шт.
6
504375264
GASKET,0.3mm Thk
1шт.
7
86619908
RELAY,12V, 150A
1шт.
8
504031939
BRACKET
1шт.
9
16585724
BOLT,M6 x 16mm, Cl 8.8
M6X16
4шт.
