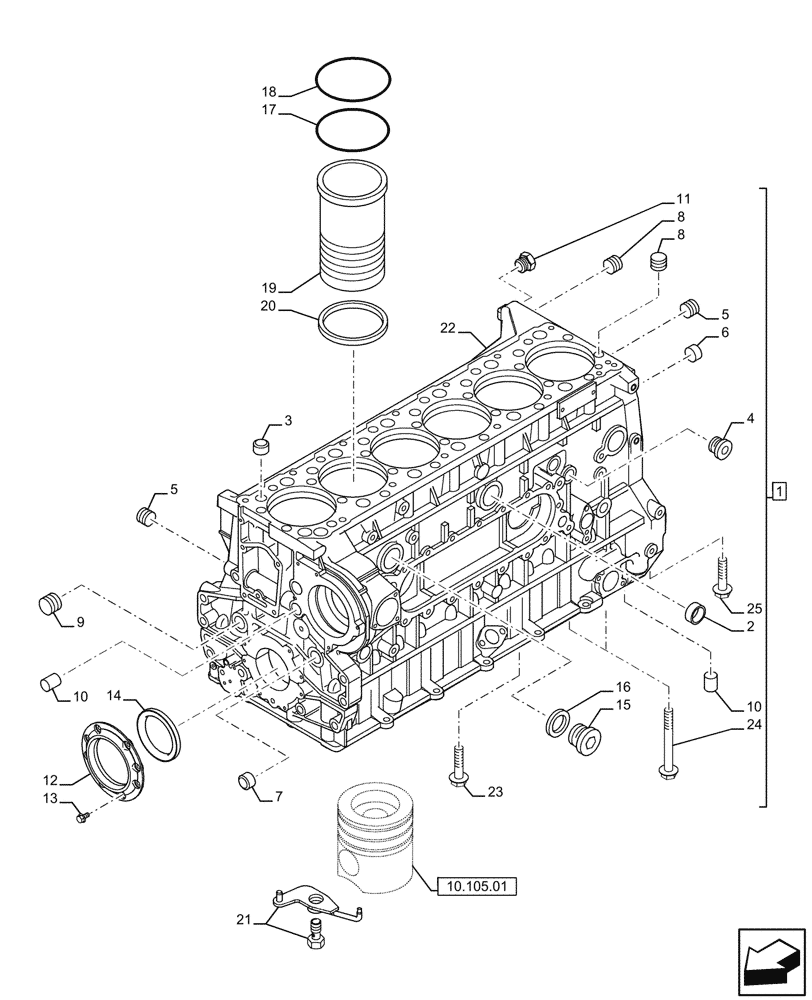

Запчасти Case IH F3BFE613B A002 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504112913 - 504045977 - 504242485 - 504114488) (10) - ENGINE

1

504191027

CYLINDER BLOCK

ASSY, Incl 2 - 11, 15, 16, 23 - 25

1шт.

2

16991370

PLUG

2шт.

3

504120669

PLUG

1шт.

4

504051237

PLUG

1шт.

5

504051238

PLUG,Threaded, 3/8" Dia

3шт.

6

500368916

DOWEL

1шт.

7

16990870

PLUG

3шт.

8

504138062

PLUG

2шт.

9

16990670

PLUG,Lock, 22mm Dia

6шт.

10

99467554

DOWEL

4шт.

11

99433597

SCREW

3шт.

12

500304671

COVER

1шт.

13

16586225

BOLT,M8 x 16mm

8шт.

14

17292581

SEALING RING

1шт.

15

16992415

PLUG,M16 x 1.5

1шт.

16

99489019

SEALING WASHER

1шт.

17

99455400

SEALING RING

6шт.

18

99455401

SEALING RING

12шт.

19

500337911

LINER, ENGINE CYLIND

6шт.

20

99448193

SHIM,0.08mm Thk

6шт.

21

504356426

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

6шт.

22

NSS

NOT SOLD SEPARAT

Cylinder block, Incl in 1

1шт.

23

504108192

SCREW,Flng, M18 x 2 x 196mm

14шт.

24

99432869

SCREW

25шт.

25

99433863

SCREW

1шт.
