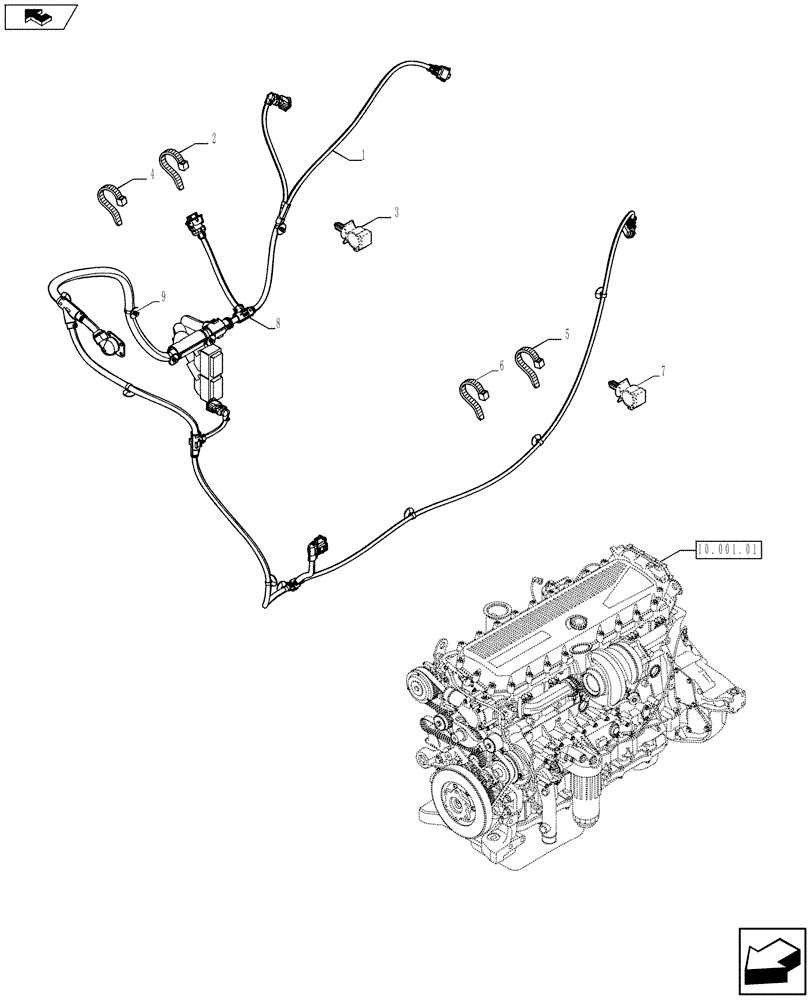

Запчасти Case IH F3BFE613B A001 (55.100.05) - MOTOR ELECTRIC INSTALLATION (504091649 - 504318394) (55) - ELECTRICAL SYSTEMS

1

5801621246

WIRE HARNESS

Main Engine Harness

1шт.

1

504149935

HARNESS

Injector Harness (seperate and not shown)

1шт.

2

99455033

CLAMP

3шт.

3

500306941

CLAMP

1шт.

4

504000061

COLLAR

1шт.

5

504000063

COLLAR

1шт.

6

504023286

CLIP,200mm L

1шт.

7

99474873

CLIP

1шт.

8

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

9

16596925

BOLT,M6 x 12mm

1шт.
