(10.206.01) - FUEL FILTER & RELATED PARTS (5801380886 - 5801412522)

Запчасти Case IH F3BFE613A A001 (10.206.01) - FUEL FILTER & RELATED PARTS (5801380886 - 5801412522) (10) - ENGINE

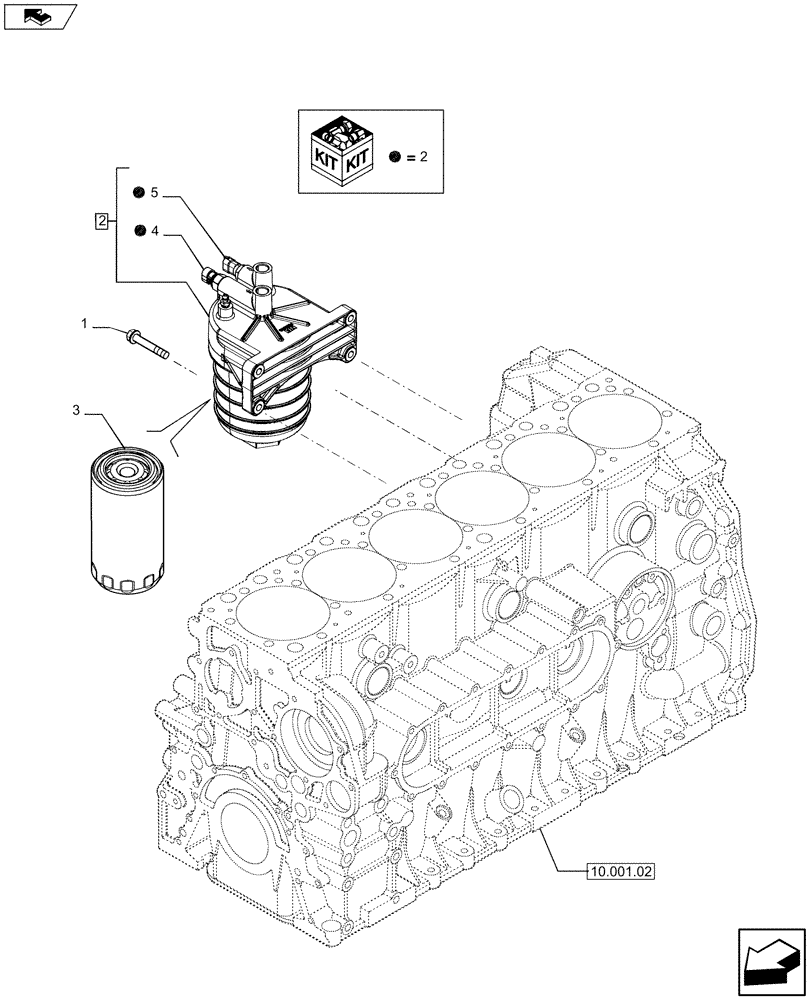

Схема запчастей Case IH F3BFE613A A001 - (10.206.01) - FUEL FILTER & RELATED PARTS (5801380886 - 5801412522) (10) - ENGINE
1
4
3
home
2
2
5
10.001.02
home
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16586525

BOLT,Hex, M8 x 30mm, Cl 8.8

4шт.

2

5801465187

FILTER ASSY

FOR CARTRIDGE TYPE FILTER

1шт.

2

504046809

FILTER HEAD

FOR SPIN ON FILTER

1шт.

3

5801439820

FUEL FILTER

CARTRIDGE

1шт.

3

84597068

FUEL FILTER

SPIN ON

1шт.

4

500346074

SENDER UNIT

CARTRIDGE FOR C9 - C10 - 13 SST

1шт.

5

82017881

SENSOR

WATER PRESSURE AND TEMP.

1шт.

6

5801483162

SUPPORT

1шт.

Выбрано товаров: 8
