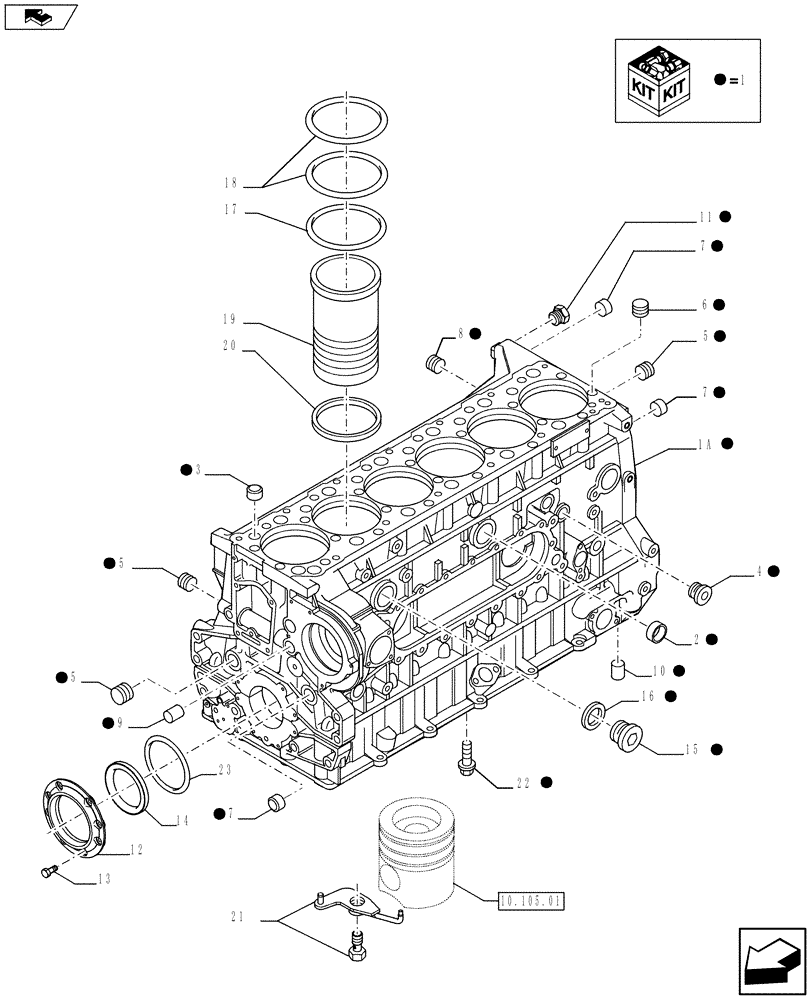

Запчасти Case IH F3BFA613C E006 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

1

504191027

CYLINDER BLOCK

Assy, Contains Ref. 1A, 2 - 11, 15, 16,22

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

16991370

PLUG

2шт.

3

16990670

PLUG,Lock, 22mm Dia

6шт.

4

504051237

PLUG

3шт.

5

98474481

PLUG

3шт.

6

500368916

DOWEL

1шт.

7

16990870

PLUG

3шт.

8

504138062

PLUG

2шт.

9

98475100

PLUG

1шт.

10

99467554

DOWEL

4шт.

11

99433597

SCREW

3шт.

12

500304671

COVER

1шт.

13

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

8шт.

14

40102683

GASKET

1шт.

15

10300714

PLUG,M16 x 1.5 x 14

1шт.

16

99489019

SEALING WASHER

1шт.

17

99455400

SEALING RING

SEALRING

6шт.

18

99455401

SEALING RING

SEALRING

12шт.

19

500337911

LINER, ENGINE CYLIND

6шт.

20

99448193

SHIM,0.08mm Thk

Thk=0,08mm

6шт.

20

99448192

SHIM,0.10mm Thk

Thk=0,10mm

6шт.

20

99448190

SHIM,0.12mm Thk

Thk=0,12mm

6шт.

20

500378983

SHIM,0.14mm Thk

Thk=0,14mm

6шт.

21

504101758

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

6шт.

22

99432869

SCREW

25шт.

22

99433863

SCREW

1шт.

22

504108192

SCREW,Flng, M18 x 2 x 196mm

14шт.

23

14467281

O-RING,0.139" Thk x 5.484" ID, -254, Cl 7, 75 Duro

1шт.
