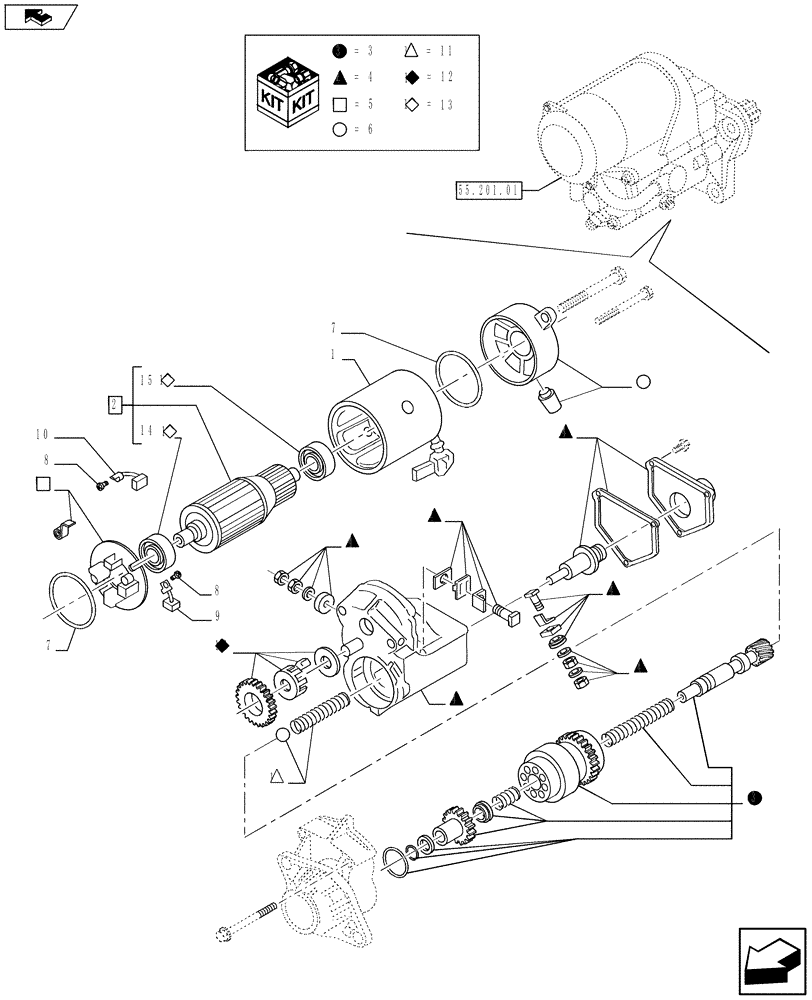

Запчасти Case IH F3BFA613C E006 (55.201.0101) - STARTER MOTOR - COMPONENTS (55) - ELECTRICAL SYSTEMS

504106753R

REMAN-STARTER

Steiger 400 w/ Brake & T2 Cursor 13 Engine

1шт.

504106753C

CORE-STARTER

Return Number

1шт.

1

42471438

STATOR

1шт.

2

42471439

ARMATURE

ASSY

1шт.

3

42471440

KIT, STARTER MTR REP

ASSY

1шт.

4

42471441

KIT, STARTER MTR REP

ASSY

1шт.

5

42471442

KIT, STARTER MTR REP

ASSY

1шт.

6

42471443

HOUSING

ASSY

1шт.

7

42471444

O-RING

2шт.

8

42471445

SCREW

4шт.

9

42471446

BRUSH, COMMUTATOR

BRUSH

2шт.

10

42471447

BRUSH, COMMUTATOR

BRUSH

2шт.

11

42471378

KIT, STARTER MTR REP

ASSY

1шт.

12

42471450

KIT, STARTER MTR REP

ASSY

1шт.

13

42546503

BEARING

ASSY

1шт.

14

42471541

BEARING

1шт.

15

42546522

BEARING

1шт.
