(10.304.01[03]) - PUMP, ENGINE OIL & RELATED PARTS

Запчасти Case IH F3BFA613C E006 (10.304.01[03]) - PUMP, ENGINE OIL & RELATED PARTS (10) - ENGINE

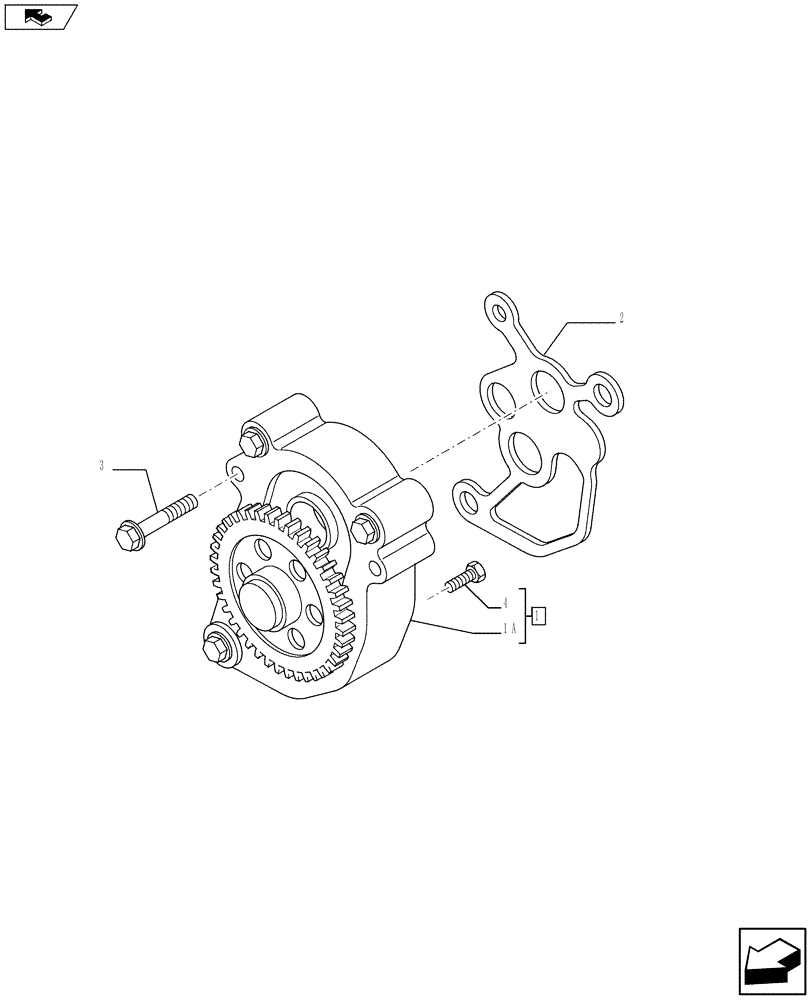

Схема запчастей Case IH F3BFA613C E006 - (10.304.01[03]) - PUMP, ENGINE OIL & RELATED PARTS (10) - ENGINE
1a
4
1
home
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

500387920

ENGINE OIL PUMP

ASSY

1шт.

504155933R

REMAN-ENG OIL PUMP

STEIGER 400, T9.450 BOTH TIER 2 - CURSOR 13 - W/BRAKE, F3BFA613C*E006, Reman For New P/N 500387920

1шт.

504155933C

CORE-ENGINE OIL PUMP

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

500387958

GASKET

1шт.

3

16592424

SCREW,M8 x 65mm

2шт.

4

16586725

BOLT,Hex, M8 x 1.25 x 40mm

1шт.
