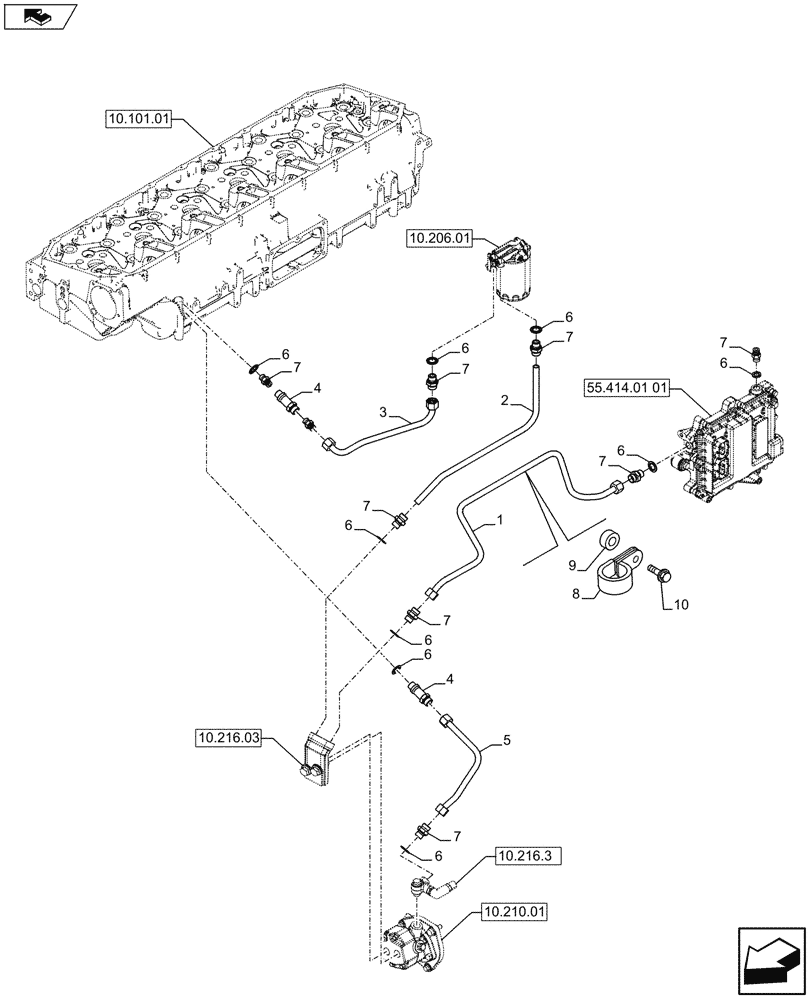

Запчасти Case IH F3BFA613A E001 (10.218.01) - FUEL LINES & RELATED PARTS (10) - ENGINE

1

500313907

RIGID TUBE

1шт.

2

5801375954

FUEL TUBE

1шт.

3

504056124

PIPE

710135 To Engine Nr. F3B10143

1шт.

3

500352453

RIGID TUBE

70135 From Engine Nr. F3B10144 Replaced From 504056124

1шт.

4

500310076

FITTING

2шт.

5

500352447

RIGID TUBE

1шт.

6

99489019

SEALING WASHER

9шт.

7

16500314

FITTING

9шт.

8

17316599

CLAMP

2шт.

9

17816211

SPARE PART

2шт.

10

16586425

BOLT,M8 x 25mm

2шт.
