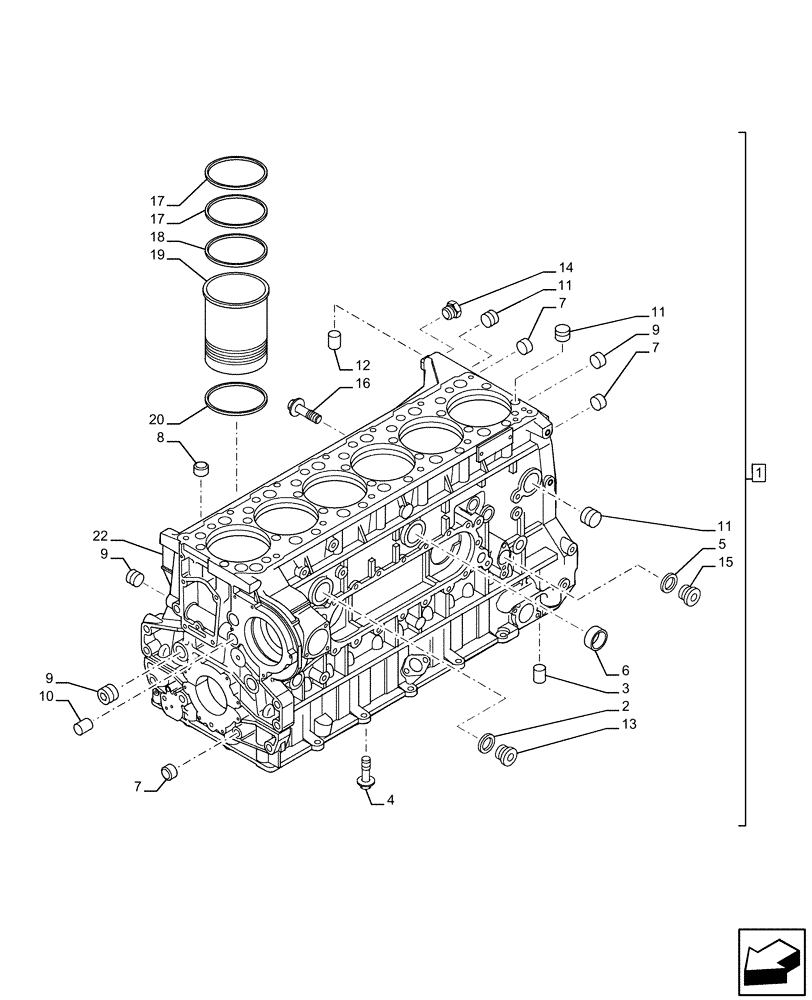

Запчасти Case IH F3BE9684B H001 (10.001.AB[01]) - CRANKCASE (10) - ENGINE

1

504172361

ASSY, Incl 2 - 15

SPARE PART

1шт.

2

4665029

PLUG

M18 x 1.5

1шт.

2

99489020

FITTING

1шт.

3

99467554

DOWEL

14mm Dia

4шт.

4

504108192

SCREW,Flng, M18 x 2 x 196mm

14шт.

4

99432869

SCREW

25шт.

4

99433863

SCREW

1шт.

5

99489019

SEALING WASHER

16 x 24mm Dia

1шт.

6

16991370

PLUG

45mm Dia

2шт.

7

16990870

PLUG

28mm Dia

2шт.

8

16990670

PLUG,Lock, 22mm Dia

6шт.

9

504051238

PLUG,Threaded, 3/8" Dia

3шт.

10

504120669

PLUG

M24 x 1.5

1шт.

11

504051237

PLUG

3шт.

12

500368916

DOWEL

1шт.

13

99469382

SEAL

18 x 261.5mm Dia

1шт.

13

16992515

PLUG

1шт.

14

99433597

SCREW

3шт.

15

16992415

PLUG,M16 x 1.5

1шт.

16

504138062

PLUG

2шт.

17

99455401

SEALING RING

152mm Dia

12шт.

18

99455400

SEALING RING

152mm Dia

6шт.

19

500337911

LINER, ENGINE CYLIND

6шт.

20

99448192

SHIM,0.10mm Thk

6шт.

20

99448190

SHIM,0.12mm Thk

6шт.

20

500378983

SHIM,0.14mm Thk

6шт.

20

99448193

SHIM,0.08mm Thk

6шт.

21

NSS

NOT SOLD SEPARAT

Crankcase, Incl in 1

1шт.
