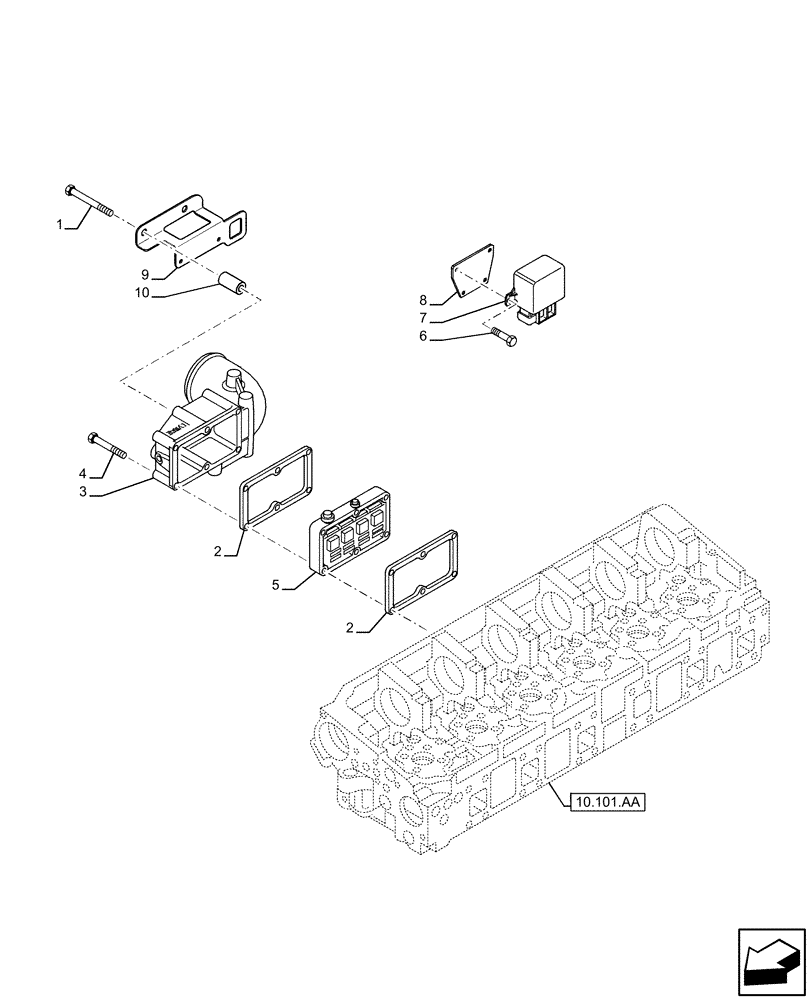

Запчасти Case IH F3BE9684A H001 (10.254.AM) - MANIFOLD - INTAKE (10) - ENGINE

1

16593125

BOLT,M10 x 100mm

4шт.

2

504375264

GASKET,0.3mm Thk

2шт.

3

5801751496

INLET MANIFOLD

1шт.

4

16599225

SCREW,M10 x 140mm

2шт.

5

5801706292

SPACER

1шт.

6

NS

NOT SERVICED

M6 x 16mm

4шт.

7

NS

NOT SERVICED

Relay 12V, 150A

1шт.

8

NS

NOT SERVICED

Bracket

1шт.

9

5801712398

BRACKET

1шт.

10

500301693

SPACER

4шт.
