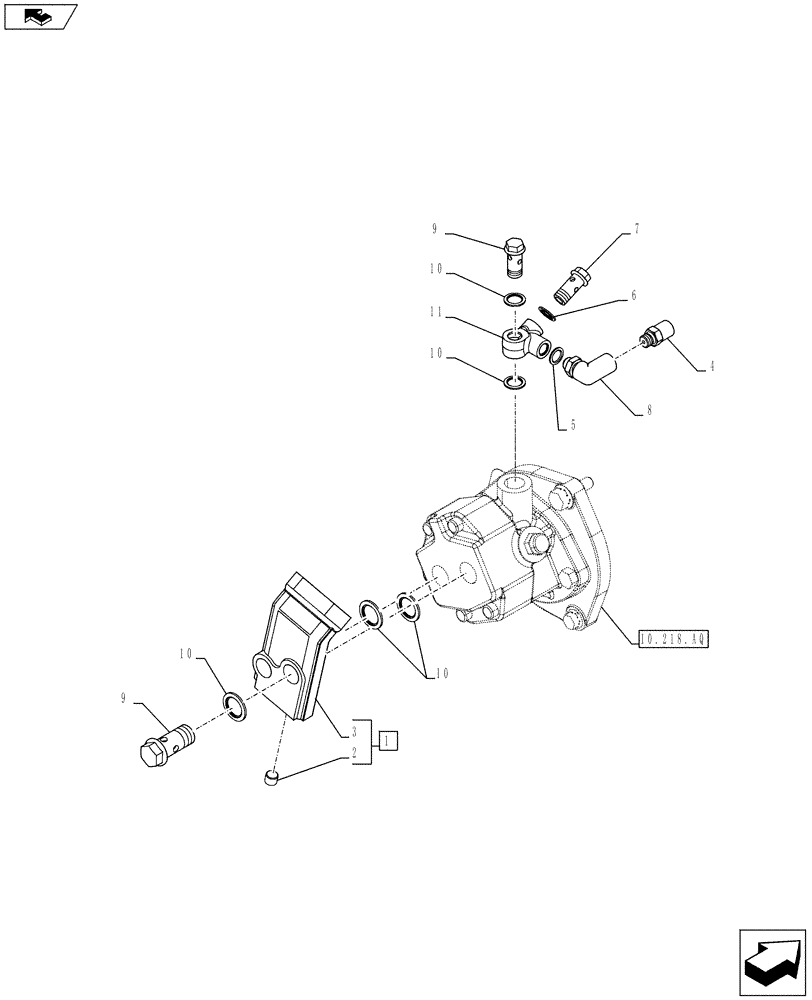

Запчасти Case IH F3BE9684A H001 (10.210.AF[02]) - FUEL LINE (10) - ENGINE

1

500314313

CONNECTING BLOCK

ASSY, Incl 2, 3

1шт.

2

98472271

PLUG

2шт.

3

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

4

500328251

VALVE PRESSURE RELIE

1шт.

5

99489018

SEALING WASHER

1шт.

6

99489019

SEALING WASHER

16 x 24 x 1.5mm Dia

1шт.

7

504081274

HYD CONNECTOR

M16 x 1.5 - M18 x 1.5

1шт.

8

500350162

ELBOW

1шт.

9

4864084

BANJO BOLT

M16 x 1.5

3шт.

9

504081282

HYD CONNECTOR

3шт.

10

98474309

GASKET,16mm ID x 24mm OD x 1.9mm Thk

6шт.

11

500348306

ELBOW

1шт.
