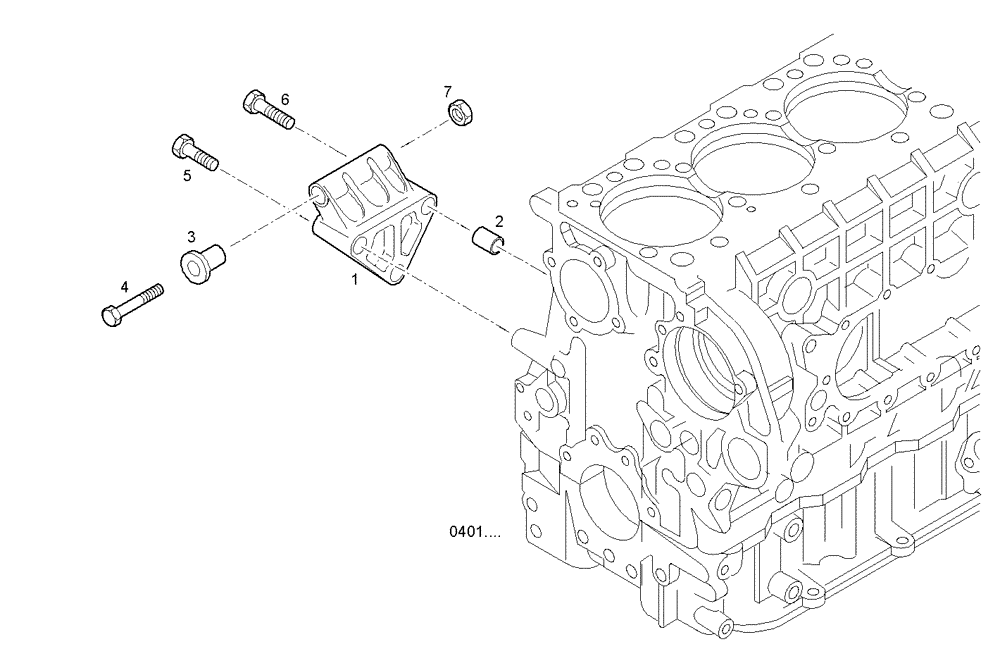

Запчасти Case IH F3BE0684Q E902 (4000.029) - GENERATOR

1

504154753

BRACKET

GENERATOR SUPPORT

1шт.

2

98405462

DOWEL

DOWEL PIN, dia=10,2 MM

2шт.

3

504080582

SPACER

SPACING BAR

1шт.

4

2855573

BOLT

HEXAGON BOLT

1шт.

5

16593025

SCREW,M10 x 90mm

HEXAGON BOLT, M10X90 MM

1шт.

6

16596625

DOWEL,Hex, M10 x 125mm, Cl 8.8

CYLIND-HEAD SCREW, M10X1,5X125

2шт.

7

337475

NUT,M12, Cl 10

HEXAGON NUT, M12 (8)

1шт.
