Запчасти Case IH F3BE0684N E918 (55.201.0102) - STARTER MOTOR - COMPONENTS (504042667) (55) - ELECTRICAL SYSTEMS

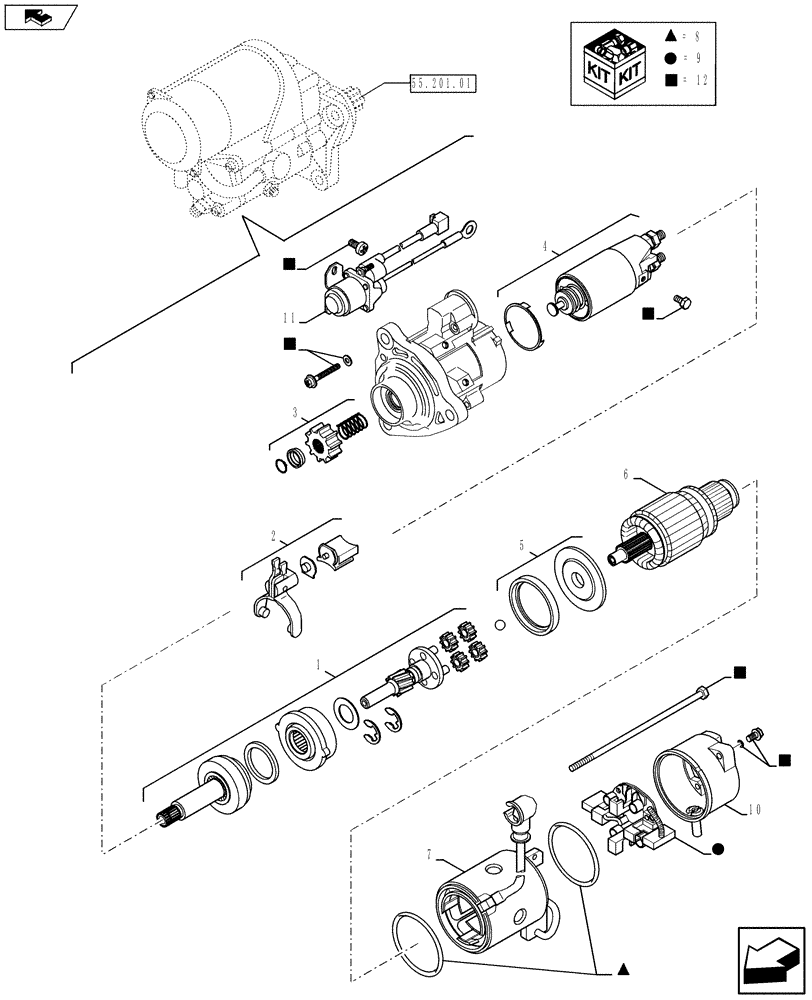

Схема запчастей Case IH F3BE0684N E918 - (55.201.0102) - STARTER MOTOR - COMPONENTS (504042667) (55) - ELECTRICAL SYSTEMS
4
8
12
55.201.01
12
11
5
9
12
12
12
8
home
6
2
7
3
10
12
1

Артикул

Название

Примечание

Количество

1

42549950

KIT, STARTER MTR REP

1шт.

2

42549951

KIT, STARTER MTR REP

ASSY

1шт.

3

42549952

KIT, STARTER MTR REP

1шт.

4

42549597

KIT, STARTER MTR REP

1шт.

5

42549953

KIT, STARTER MTR REP

1шт.

6

42549954

KIT, STARTER MTR REP

1шт.

7

42549955

KIT, STARTER MTR REP

1шт.

8

42549956

O-RING

M5

1шт.

9

42549957

BRUSH

1шт.

10

42549958

COVER

1шт.

11

42549959

COMMUTATOR BRUSH

1шт.

12

42549605

KIT, STARTER MTR REP

1шт.

Выбрано товаров: 12
