Запчасти Case IH F3BE0684N E918 (10.105.02) - CONNECTING ROD (504051795) (10) - ENGINE

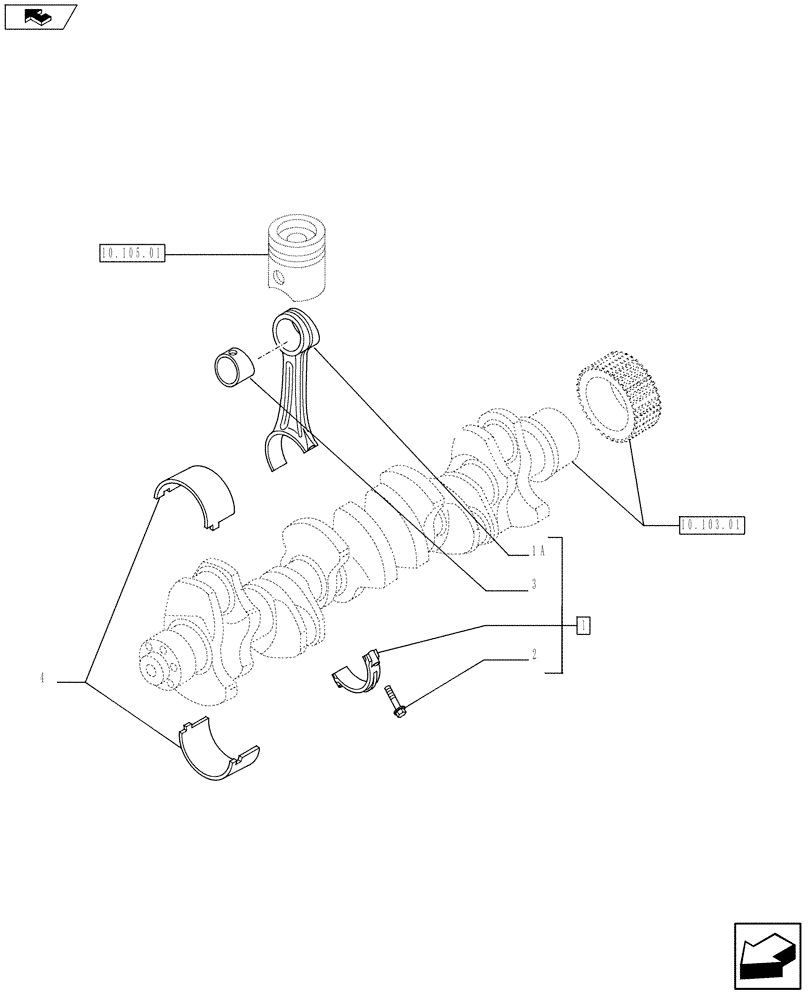

Схема запчастей Case IH F3BE0684N E918 - (10.105.02) - CONNECTING ROD (504051795) (10) - ENGINE
2
home
10.105.01
1a
3
4
10.103.01
1

Артикул

Название

Примечание

Количество

1

504028545

CONNECTING ROD

ASSY Contains Ref.1A, 2, 3

6шт.

504028545R

REMAN-CONNECTING ROD

F3BE0684N*E918 ENGINE 5801464761 - 84405037

6шт.

504028545C

CORE-ROD CONNECTING

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

6шт.

2

99431774

BOLT

12шт.

3

99460197

BUSHING

6шт.

4

2992158

SET OF CONN ROD BRGS STD,Red

6шт.

4

2992159

SET OF CONN ROD BRGS STD,Green

6шт.

4

2992160

SET OF CONN ROD BRGS U/S,0.127, Red/Black

6шт.

4

2992161

SET OF CONN ROD BRGS U/S,0.127, Green/Black

6шт.

4

2992162

SET OF CONN ROD BRGS U/S,0.254, Red

6шт.

4

2992163

SET OF CONN ROD BRGS U/S,0.254, Green

6шт.

4

2992164

SET OF CONN ROD BRGS U/S,0.508, Red

6шт.

4

2992165

SET OF CONN ROD BRGS U/S,0.508, Green

6шт.

Выбрано товаров: 14
