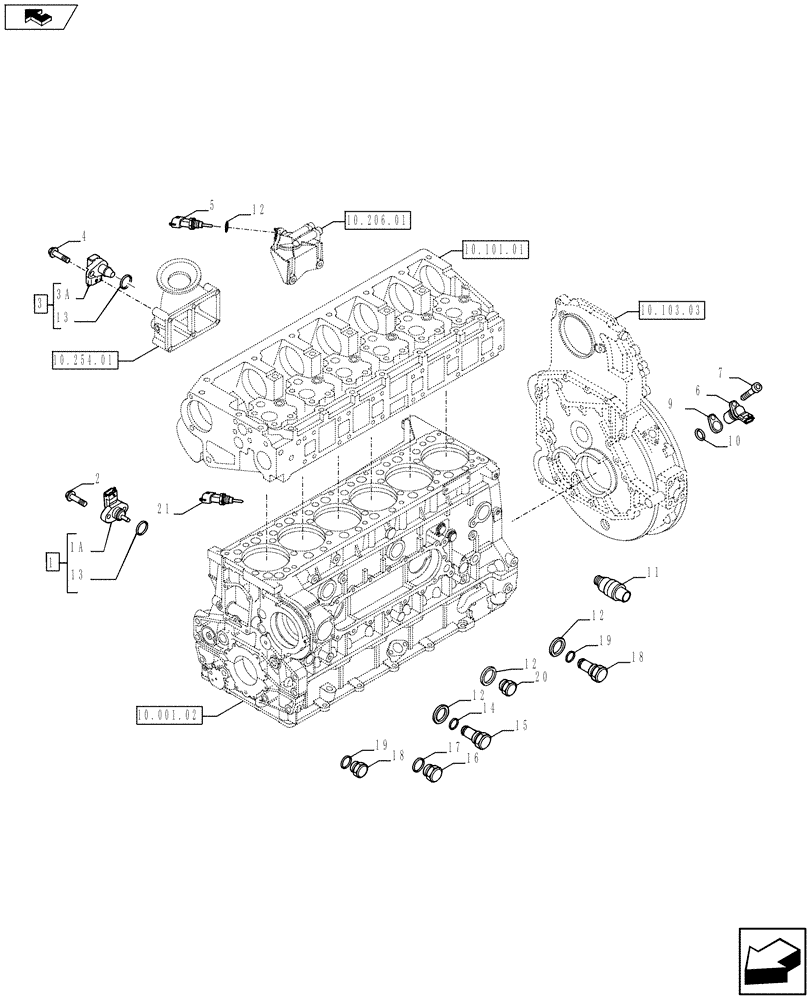

Запчасти Case IH F3BE0684N E916 (55.414.01) - MOTOR SENSORS (504140450-504228090-504236504) (55) - ELECTRICAL SYSTEMS

1

504358206

OIL Prss.&Temper. ASSY Contains Ref.1A, 13

SWITCH,Pressure

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

3

504073323

SENSOR

Air Press.&Temper. ASSY Contains Ref.3A, 13

1шт.

3a

NSS

NOT SOLD SEPARAT

1шт.

4

2853118

BOLT,Hex, M6 x 1 x 18mm

1шт.

5

82017881

SENSOR

2шт.

6

504096645

TRANSMITTER

2шт.

7

16689124

SCREW,M6 x 16mm

1шт.

8

16689024

SCREW,M16 x 12mm

1шт.

9

504163664

SPACER

1шт.

10

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

1шт.

11

500346371

SENSOR

Filter Indicator

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

14 x 22 mm

8шт.

13

42546555

O-RING

2шт.

14

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

15

504084571

PLUG

1шт.

16

10300714

PLUG,M16 x 1.5 x 14

M16

1шт.

17

99489019

SEALING WASHER

16 x 24 mm

1шт.

18

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

3шт.

19

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

3шт.

20

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

Lock, M14

2шт.

21

500346074

SENDER UNIT

Fuel Pressure Transmitter

1шт.
