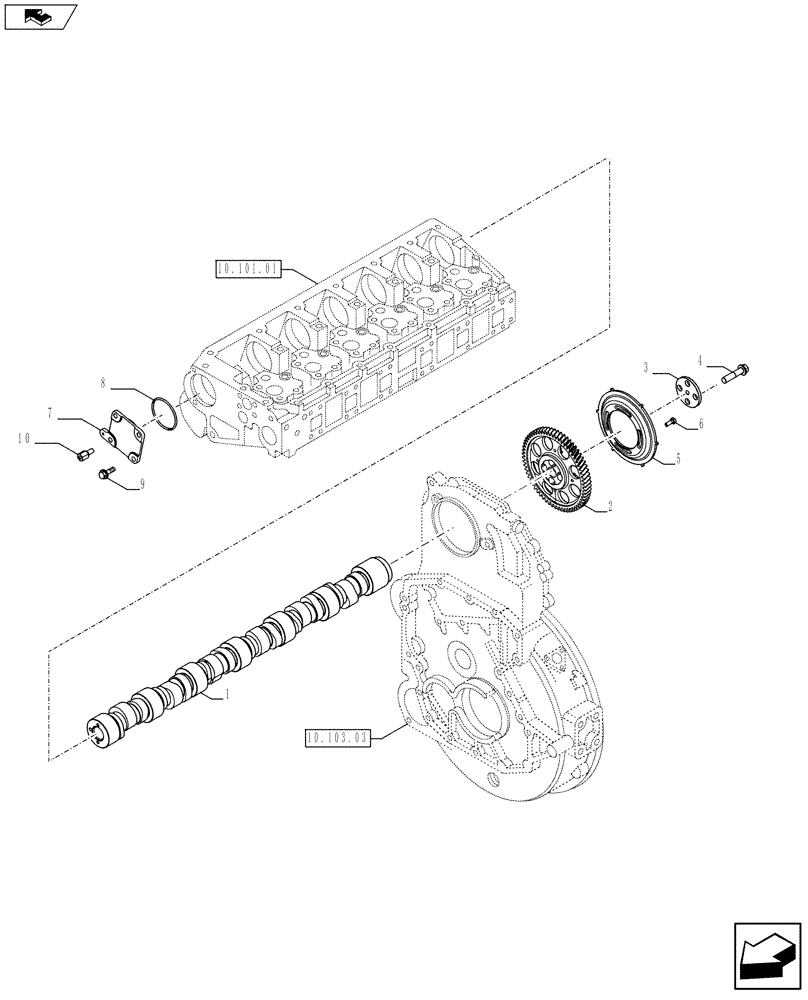

Запчасти Case IH F3BE0684N E916 (10.106.01) - CAMSHAFT - TIMING CONTROL (504227216) (10) - ENGINE

1

504227220

CAMSHAFT

1шт.

504227220R

REMAN-CAMSHAFT

F3BE0684N*E916 - ENGINE 5801464761 - 84405037, CR9080A3 - TIER3 COMBINES CR98A3-TTD (12/11-)

1шт.

504227220C

CORE-CAMSHAFT

Return Number

1шт.

2

504367235

GEAR

1шт.

3

98496024

SPACER

1шт.

4

504367230

SCREW

4шт.

5

504367236

PLATE

1шт.

6

99431774

BOLT

M8X1.25X25

5шт.

7

504204255

COVER

1шт.

8

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

1шт.

9

16587124

FLANGE BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

M10 x 25

3шт.

10

504093610

SCREW

M8 x 1,25

1шт.
