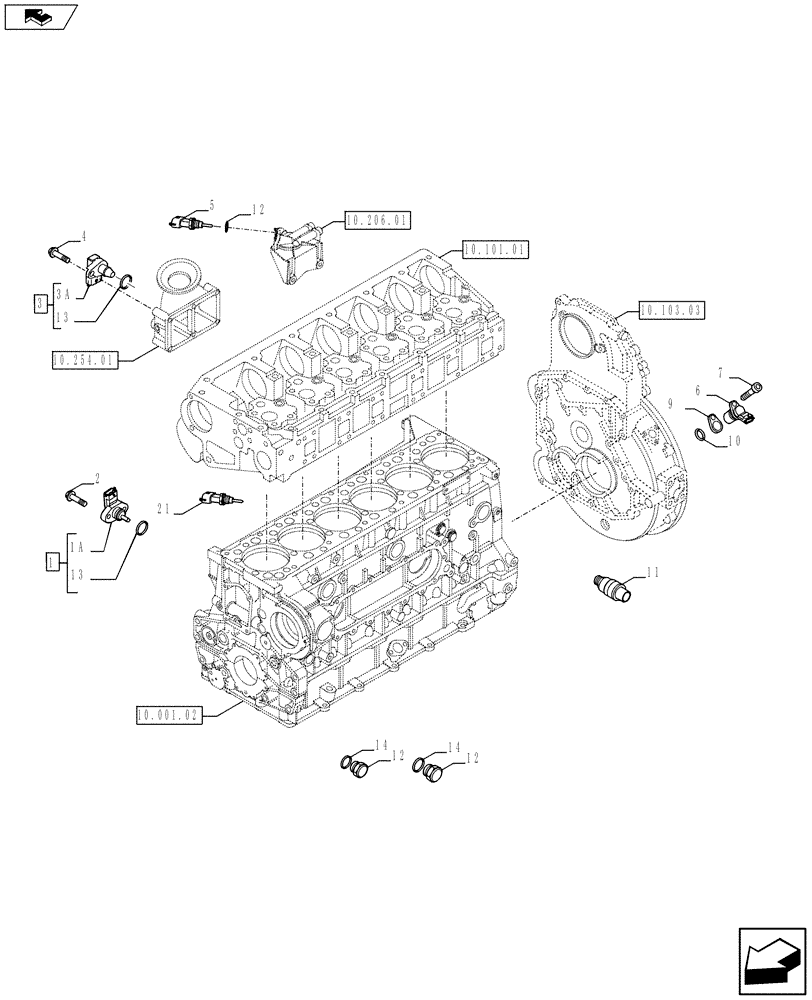

Запчасти Case IH F3BE0684N E915 (55.414.01) - MOTOR SENSORS (55) - ELECTRICAL SYSTEMS

1

504358206

OIL PRESS. & TEMPER. ASSY Contains Ref.1A, 13

SWITCH,Pressure

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

3

504073323

SENSOR

AIR PRESS. & TEMPER. ASSY Contains Ref.3A, 13

1шт.

3a

NSS

NOT SOLD SEPARAT

1шт.

4

2853118

BOLT,Hex, M6 x 1 x 18mm

1шт.

5

82017881

SENSOR

2шт.

6

504096645

TRANSMITTER

2шт.

7

16689124

SCREW,M6 x 16mm

1шт.

8

16689024

SCREW,M16 x 12mm

1шт.

9

504163664

SPACER

1шт.

10

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

1шт.

11

504051237

PLUG

Filter Indicator

1шт.

12

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

3шт.

13

42546555

O-RING

2шт.

14

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.
