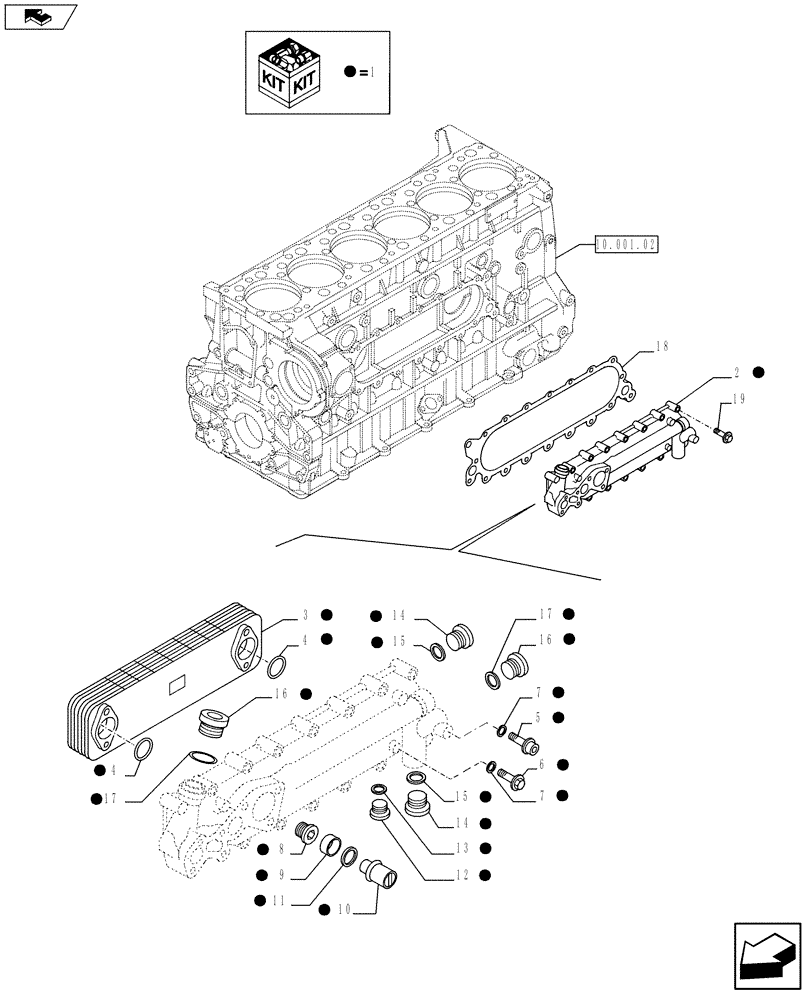

Запчасти Case IH F3BE0684N E915 (10.408.01) - HEAT EXCHANGER (504123438) (10) - ENGINE

1

504123494

OIL COOLER

ASSY

1шт.

2

504106451

HEAT EXCHANGER

Cover heat exchanger

1шт.

3

98498467

INTERNAL EXCHANGE UN

1шт.

4

14459081

O-RING,1.737" ID x 0.103" Width

M8 x 80

2шт.

5

16586625

BOLT,M8 x 35mm

M8 x 30

3шт.

6

16586925

BOLT,M8 x 50mm

2шт.

7

98474303

WASHER,8mm ID x 14mm OD x 2.3mm Thk

4шт.

8

99433799

PLUG

1шт.

9

99433798

SPACER

1шт.

10

98498322

THERMOSTAT

1шт.

11

98494952

GASKET,35mm ID x 1.5mm Thk

1шт.

12

10300714

PLUG,M16 x 1.5 x 14

1шт.

13

99489019

SEALING WASHER

3шт.

14

16993711

PLUG,M35 x 1.5

3шт.

15

99469380

GASKET,33mm ID x 45mm OD x 2.8mm Thk

3шт.

16

10278301

PLUG,M28 x 1.5 x 11, Brass

3шт.

17

99432291

GASKET,28mm ID

3шт.

18

504045796

GASKET

IN ALTERNATIVE

1шт.

19

16586725

BOLT,Hex, M8 x 1.25 x 40mm

11шт.

19

504064192

BOLT

2шт.

19

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

2шт.

19

16673735

BOLT,Hex, M8 x 1.25 x 25mm

3шт.
