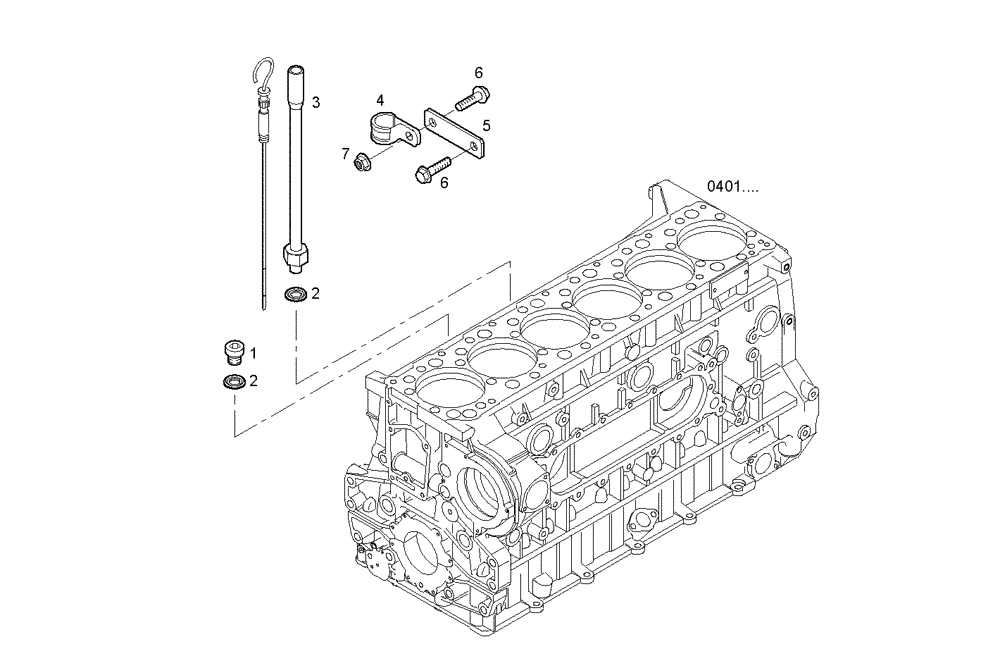

Запчасти Case IH F3BE0684N E906 (2712.028) - OIL DIPSTICK PIPE

1

16992515

PLUG

THREADED PLUG, M18X1,5

1шт.

2

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

SEAL GASKET, dia=18X26 MM SP=1,5 MM

2шт.

3

504117954

TUBE

OIL LEVEL TUBE

1шт.

4

17316699

CLAMP

PIPE CLIP, dia=14 MM

1шт.

5

504066745

BRACKET

RETAINER

1шт.

6

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM

2шт.

7

2852389

FLANGE NUT

HEXAGON NUT, M8

1шт.
