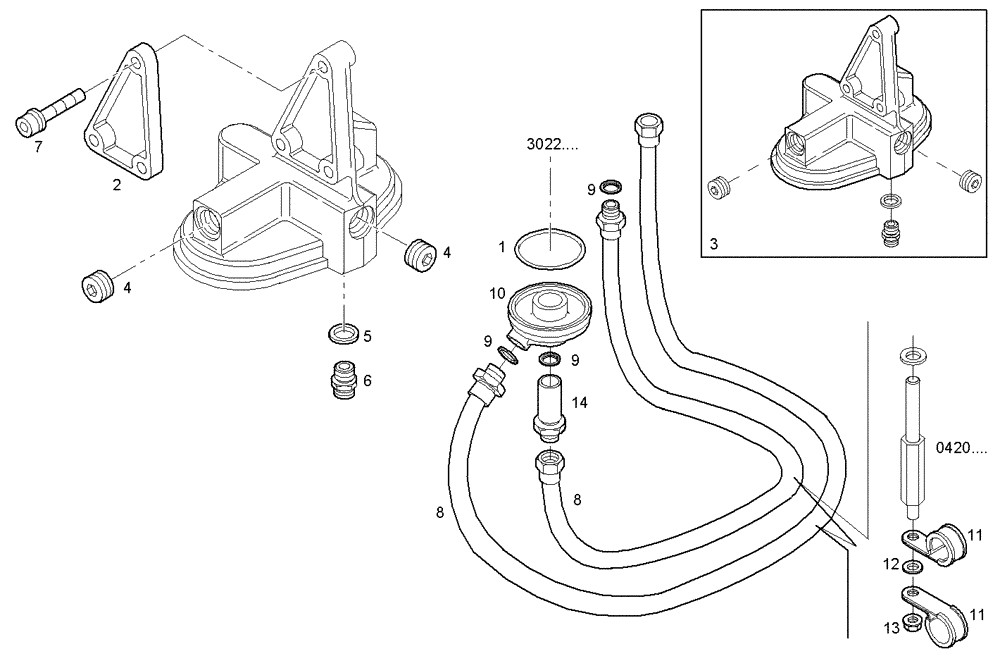

Запчасти Case IH F3BE0684N E903 (3064.025) - OIL DELIVERY LINE

1

17291281

GASKET,94.84mm ID x 3.53mm Thk

O-RING, dia=94,84 MM SP=3,53 MM

1шт.

2

504286678

SPACER

SPACING BAR

1шт.

3

504033726

FILTER HEAD

OIL FILTER SUPPORT, ASSY

1шт.

4

98475100

PLUG

THREADED PLUG, R3/4x12

2шт.

5

99434480

SEAL

SEAL GASKET, dia=30X40 MM

1шт.

6

504037176

FITTING

THREADED UNION, M30X2

1шт.

7

16674934

SCREW,M8 x 80mm

HEXAGON BOLT, M8X80 MM

3шт.

8

504266317

FLEXIBLE HOSE

HOSE

2шт.

9

99434480

SEAL

SEAL GASKET, dia=30X40 MM

3шт.

10

504005569

SUPPORT

SUPPORT

1шт.

11

17317390

CLAMP

FASTENING BRACKET, dia=28 MM x M8

8шт.

12

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

WASHER, dia=8X16 MM

4шт.

13

2852389

FLANGE NUT

HEXAGON NUT, M8

4шт.

14

500382730

FITTING

PIPE SOCKET

1шт.
