(55.015.AC) - ENGINE - SENSOR

Запчасти Case IH F3BE0684J E919 (55.015.AC) - ENGINE - SENSOR (55) - ELECTRICAL SYSTEMS

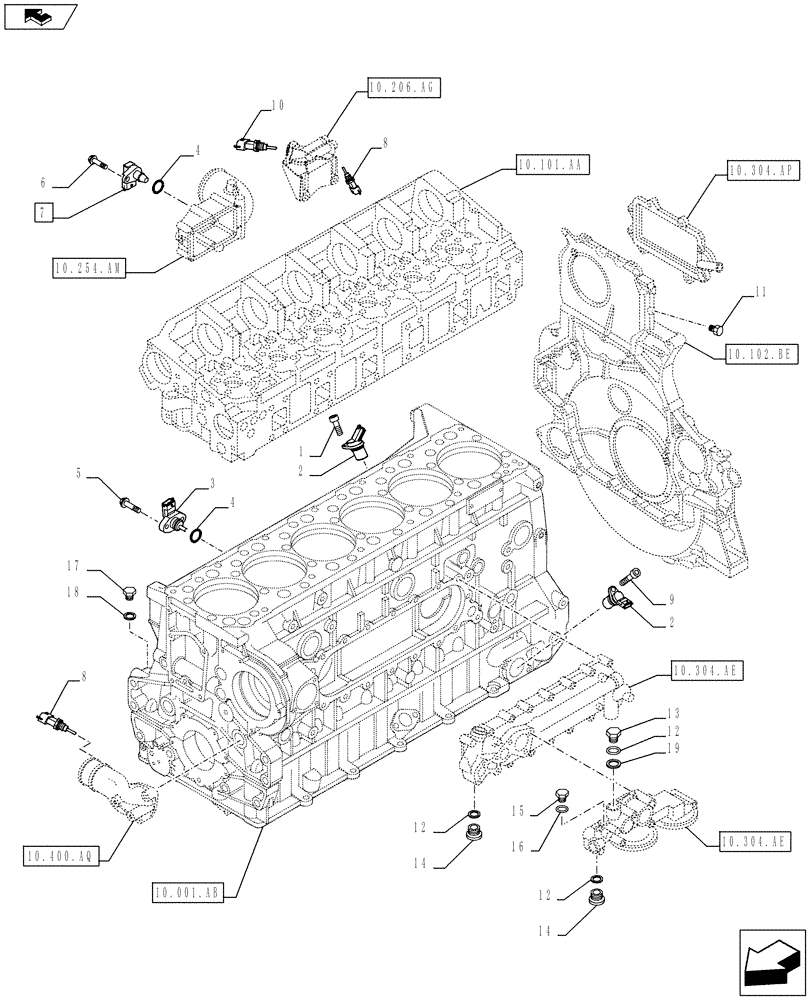

Схема запчастей Case IH F3BE0684J E919 - (55.015.AC) - ENGINE - SENSOR (55) - ELECTRICAL SYSTEMS
10.101.aa
5
12
12
10.102.be
17
10.001.ab
1
1
4
4
12
2
13
16
14
home
6
8
10.206.ag
9
1
15
10.254.am
7
19
2
10.400.aq
3
10.304.ae
11
18
10.304.ap
10
14
10.304.ae
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16689024

SCREW,M16 x 12mm

M6 x 12 mm

1шт.

2

504096645

TRANSMITTER

Camshaft and crankshaft, 2 wire

2шт.

3

Switch, Oil pressure and temperature, ASSY, Incl 4

1шт.

4

42546555

O-RING

2шт.

5

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

6

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18 mm

1шт.

7

504372225

SENSOR,Temperature / Pressure

Air pressure and temperature, 4 wire, ASSY, Incl 4

1шт.

8

82017881

SENSOR

Pressure and temperature

2шт.

9

16689124

SCREW,M6 x 16mm

1шт.

10

500346074

SENDER UNIT

Pressure

1шт.

11

500346371

SENSOR

Chocked filter

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14 x 22 x 1.5 mm

4шт.

13

504084571

PLUG

1шт.

14

16992315

PLUG

M14 x 1.5

2шт.

15

10300714

PLUG,M16 x 1.5 x 14

M16 x 1.5

1шт.

16

99489019

SEALING WASHER

D=16 x 24 x 1.5 mm

1шт.

17

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

18

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

D=12 x 20 x 1.5 mm

1шт.

19

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

M7.65 x 1.78

1шт.
