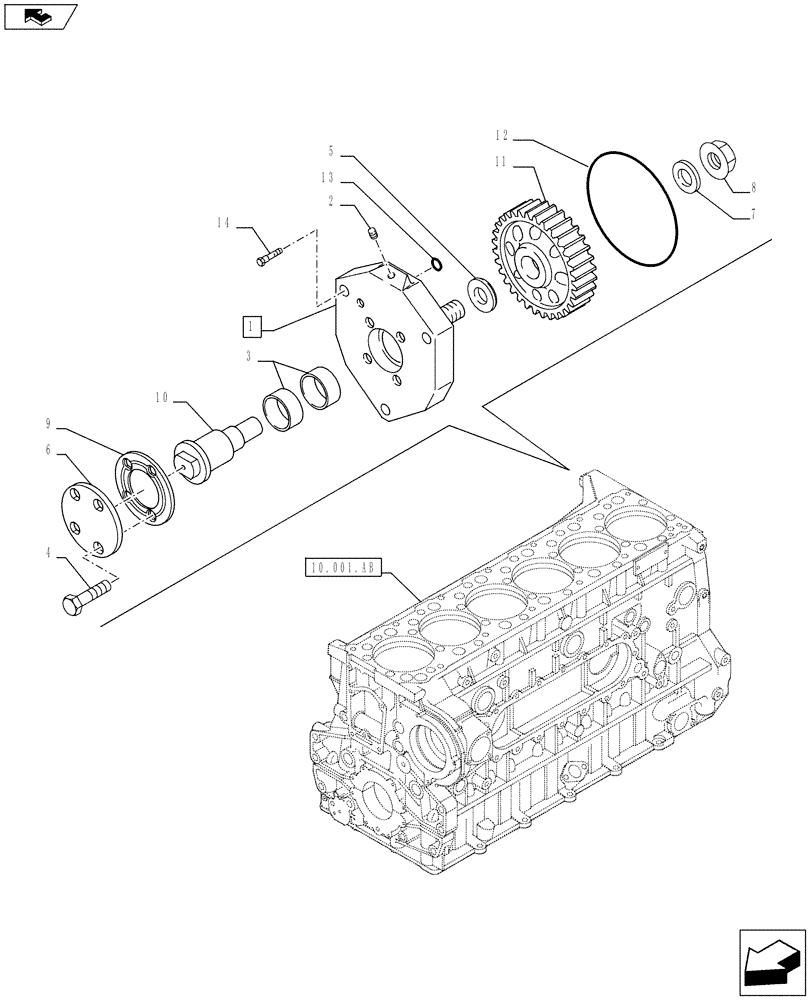

Запчасти Case IH F3BE0684J E919 (10.114.AB) - PULLEY DRIVE - SUPPORT (10) - ENGINE

1

500382578

SUPPORT

ASSY, Incl 2 - 11

1шт.

2

504051236

PLUG,Threaded, 1/8"

D=1/8

1шт.

3

4788087

BUSHING,36.57mm ID x 40.98mm OD x 17.2mm L

2шт.

4

18139424

SCREW,Hex, M10 x 20mm

M10 x 20 mm

1шт.

5

500351319

LOCK WASHER

1шт.

6

500355019

COVER

PTO

1шт.

7

500382574

LOCK WASHER

1шт.

8

17046231

NUT

M20

1шт.

9

500355018

GASKET

1шт.

10

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

12

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

D=126.59 x 3.53 mm

1шт.

13

14456881

O-RING,0.362" ID x 0.103" Width

D=9.19 mm

1шт.

14

16678135

SCREW,M12 x 45mm

M12 x 45 mm

3шт.
