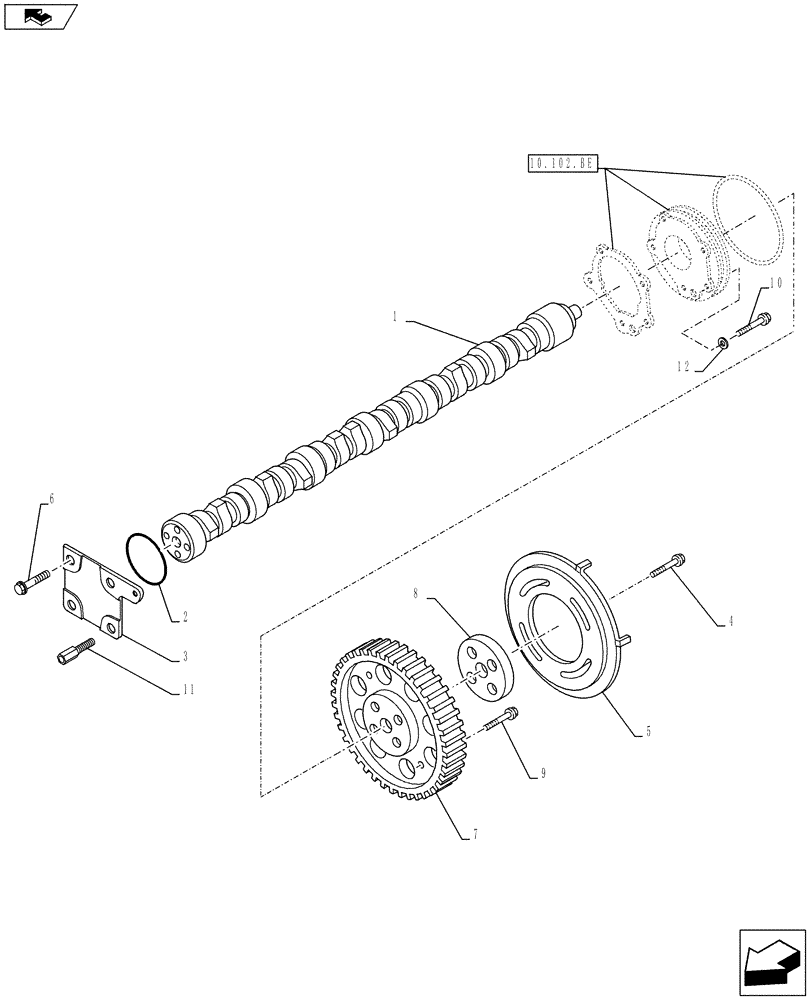

Запчасти Case IH F3BE0684J E919 (10.106.AA) - CAMSHAFT - TIMING CONTROL (10) - ENGINE

1

504227220

CAMSHAFT

1шт.

504227220R

REMAN-CAMSHAFT

F3BE0684J*E919 - ENGINE - 5801464764 - 84183017 (9/12-)

1шт.

504227220C

CORE-CAMSHAFT

Return Number

1шт.

2

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

D=78.97 x 3.53 mm

1шт.

3

504204255

COVER

1шт.

4

504367230

SCREW

M8 x 1.25

4шт.

5

504367236

PLATE

M8 x 1.25 x 25 mm

1шт.

6

16587125

SCREW,M10

M10 x 25 mm

3шт.

7

504367235

GEAR

1шт.

8

98496024

SPACER

1шт.

9

99431774

BOLT

4шт.

10

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

M8 x 25 mm

5шт.

11

504093610

SCREW

M8 x 1.25

1шт.

12

17096824

LOCK WASHER

D=8.40 x 15 mm

5шт.
