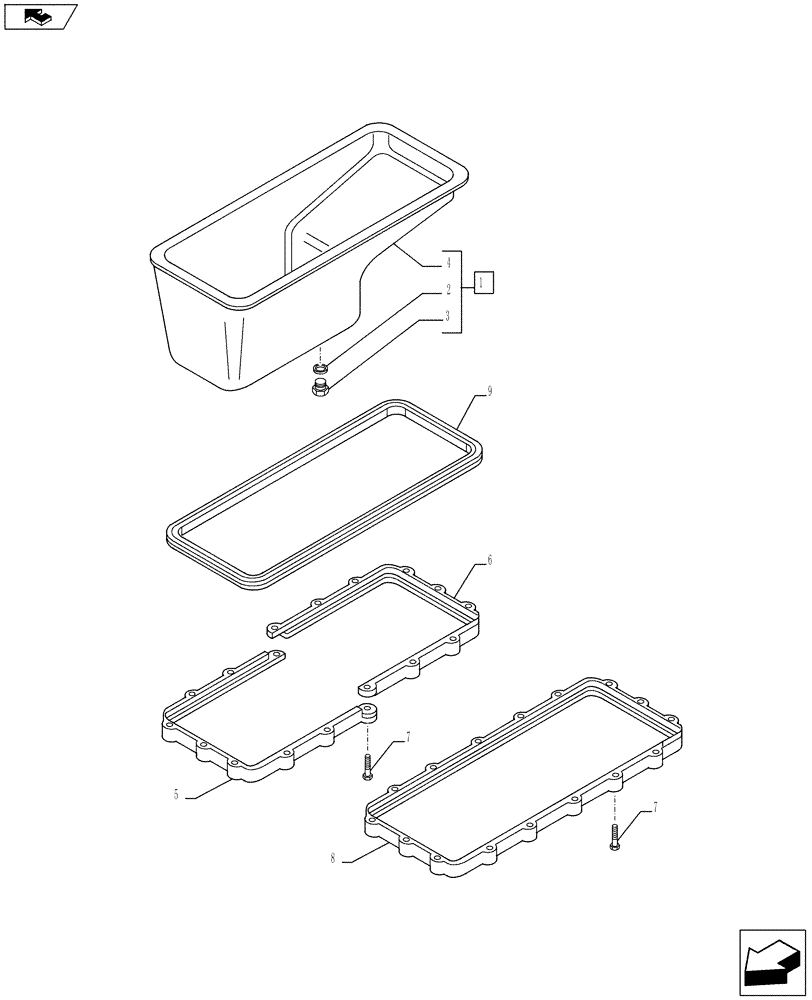

Запчасти Case IH F3BE0684J E919 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

504024778

ENGINE OIL PAN

ASSY, Incl 2 - 4

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22 mm

1шт.

3

10305171

PLUG,M22 x 1.5 x 21

M22 x 1.5

1шт.

4

NSS

NOT SOLD SEPARAT

Oil Sump, Incl in 1

1шт.

5

99449984

SPACER

1шт.

Up to Engine n 104597

1шт.

6

99449985

SPACER

16шт.

Up to Engine n 104597

1шт.

7

16587525

BOLT,M10 x 45mm

16шт.

8

504276421

SPACER

1шт.

From Engine n 104598

1шт.

9

5801464913

GASKET

1шт.
