Запчасти Case IH F3BE0684J E902 (0401.024) - CRANKCASE

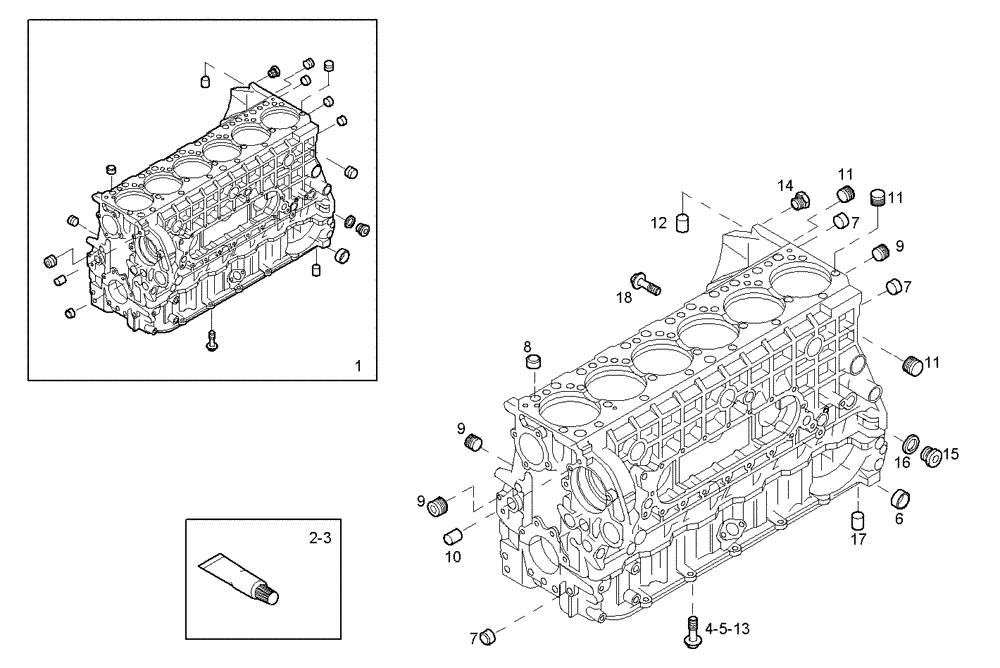

Схема запчастей Case IH F3BE0684J E902 - (0401.024) - CRANKCASE

Артикул

Название

Примечание

Количество

1

504116738

CYLINDER BLOCK

CRANKCASE

1шт.

2

2992695

SEAL

ADHESIVE/STICKER, LOCTITE

1шт.

3

2995644

SEALANT

ADHESIVE/STICKER

1шт.

4

504108192

SCREW,Flng, M18 x 2 x 196mm

HEXAGON BOLT, M18X2X196 MM

14шт.

5

99432869

SCREW

HEXAGON BOLT, M12X125 MM

25шт.

6

16991370

PLUG

LOCK PLUG, dia=45 MM

2шт.

7

16990870

PLUG

LOCK PLUG, dia=28 MM

3шт.

8

16990670

PLUG,Lock, 22mm Dia

LOCK PLUG, dia=22 MM

6шт.

9

98474481

PLUG

THREADED PLUG

3шт.

10

504120669

PLUG

LOCK PLUG, M24X1,5

1шт.

11

504051237

PLUG

THREADED PLUG, DIAM=1/4"

1шт.

12

500368916

DOWEL

OIL NOZZLE

1шт.

13

99433863

SCREW

HEXAGON BOLT, M12X58 MM

1шт.

14

99433597

SCREW

THREADED PLUG, M12X16 MM

3шт.

15

10300714

PLUG,M16 x 1.5 x 14

THREADED PLUG, M16X1,5

1шт.

16

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

17

99467554

DOWEL

DOWEL PIN, dia=14 MM

4шт.

18

504138062

PLUG

PLUG, dia=10 MM

2шт.

Выбрано товаров: 18
