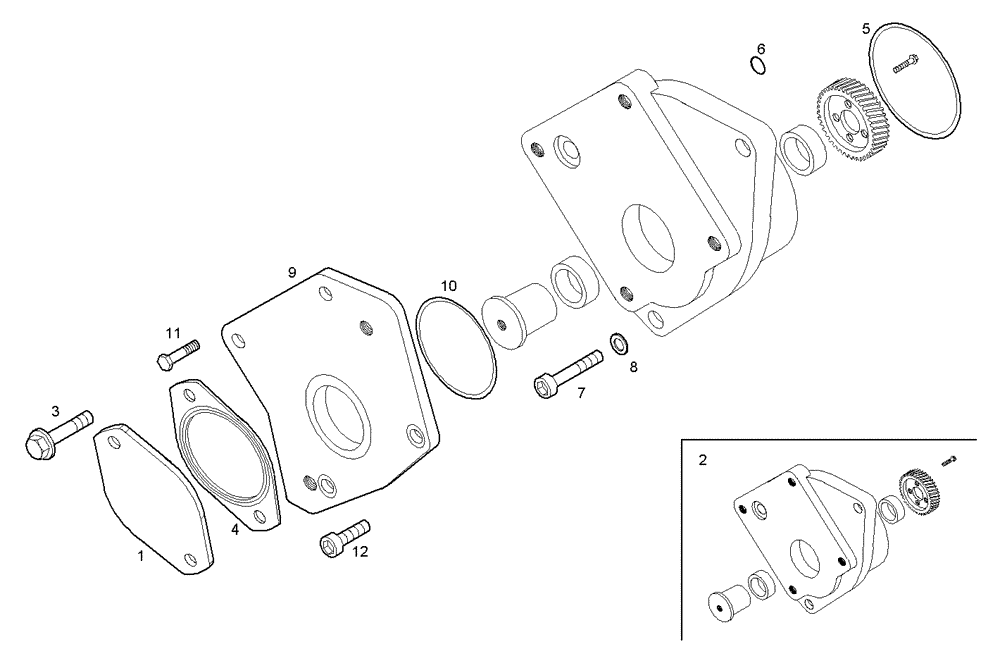

Запчасти Case IH F3BE0684G E901 (3500.060) - POWER TAKE OFF

1

2852175

COVER

COVER

1шт.

2

504083509

PTO

POWER TAKE OFF, ASSY

1шт.

3

16692225

BOLT

HEXAGON BOLT

2шт.

4

4895329

GASKET

FLAT ENGINE GASKET

1шт.

5

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

O-RING, dia=126,59 MM SP=3,53 MM

1шт.

6

14456881

O-RING,0.362" ID x 0.103" Width

O-RING, dia=9,19 MM

1шт.

7

1103790

SCREW

CYLIND-HEAD SCREW, M12X45 MM

3шт.

8

17095224

WASHER

WASHER, dia=12X20 MM

3шт.

9

504061368

SPACER

SPACING BAR

1шт.

10

504042516

O-RING

O-RING

1шт.

11

16587325

SCREW,Hex, M10 x 35mm

HEXAGON BOLT, M10X35 MM

2шт.

12

16693724

SCREW,M12

CYLIND-HEAD SCREW, M12

2шт.
