Запчасти Case IH F3BE0684G E901 (3050.031) - SUCTION STRAINER

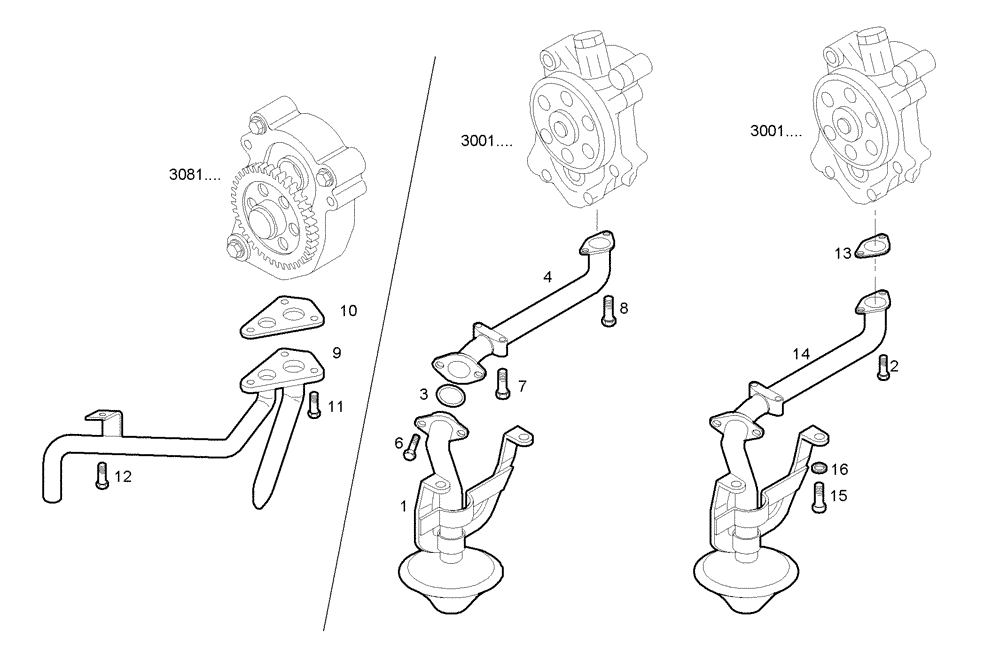

Схема запчастей Case IH F3BE0684G E901 - (3050.031) - SUCTION STRAINER

Артикул

Название

Примечание

Количество

1

99475585

STRAINER ELEMENT

SUCTION STRAINER, UP TO # 51741

1шт.

2

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM, FROM # 51742

2шт.

3

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

O-RING, dia=37,69 MM SP=3,53 MM, UP TO # 51741

1шт.

4

99475589

RIGID TUBE

OIL LINE, UP TO # 51741

1шт.

6

16586225

BOLT,M8 x 16mm

HEXAGON BOLT, M8X1,25X16 MM, UP TO # 51741

2шт.

7

16592525

BOLT,M8 x 1.25 x 70mm

HEXAGON BOLT, M8X70 MM, UP TO # 51741

2шт.

8

16673835

BOLT,Hex, M8 x 30mm

HEXAGON BOLT, M8X30 MM, UP TO # 51741

2шт.

9

500388917

TUBE

CONNECTION PIPE

1шт.

10

500388968

GASKET

FLAT ENGINE GASKET

1шт.

11

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

HEXAGON BOLT, M8X1.25X20

3шт.

12

2852323

SCREW,M8 x 1.25 x 14mm

HEXAGON BOLT, M8X14 MM

1шт.

13

500343518

GASKET

FLAT ENGINE GASKET, FROM # 51742

1шт.

14

504128916

FILTER STRAINER

SUCTION STRAINER, FROM # 51742

1шт.

15

16690424

SCREW

CYLIND-HEAD SCREW, M8X1,25X16 MM, FROM # 51742

4шт.

16

17096824

LOCK WASHER

WASHER, dia=8,40X15 MM, FROM # 51742

4шт.

Выбрано товаров: 15
