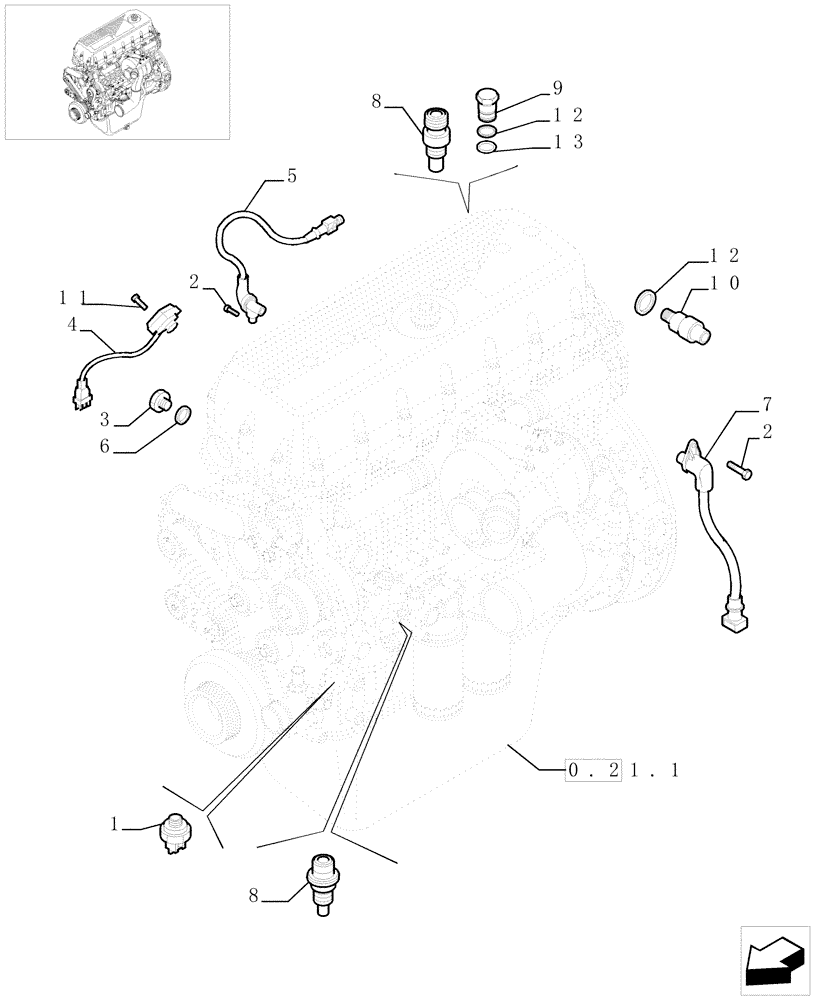

Запчасти Case IH F3BE0684E B003 (0.17.1[01]) - MOTOR SENSORS (504058915 - 504085690)

1

2852141

SENDER UNIT

Oil Temperature (BORLETTI)

1шт.

1

2852142

SENDER UNIT

Oil Temperature (SIPEA)

1шт.

2

16688924

SCREW,M6 x 10mm

M6X10 mm

2шт.

1

84053657

PRESSURE SWITCH

For FX50 Model (serial number 375415002)

1шт.

1

84053657

PRESSURE SWITCH

(For FX50 model)

1шт.

3

16992411

PLUG

M16X1,5

1шт.

3

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

4

2852821

SENSOR

Air Temperature / Pressure, 4 wire

1шт.

5

99450797

SENDER UNIT

Camshaft Position Sensor

1шт.

6

99489019

SEALING WASHER

1шт.

7

82017874

SENSOR

Flywheel Position Sensor

1шт.

8

82017881

SENSOR

Coolant Temperature

3шт.

9

504084571

PLUG

1шт.

10

500346371

SENSOR

Plugged Fuel Filter Switch

1шт.

11

2853118

BOLT,Hex, M6 x 1 x 18mm

M6X18 mm

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=12 mm

2шт.

13

14456881

O-RING,0.362" ID x 0.103" Width

1шт.
