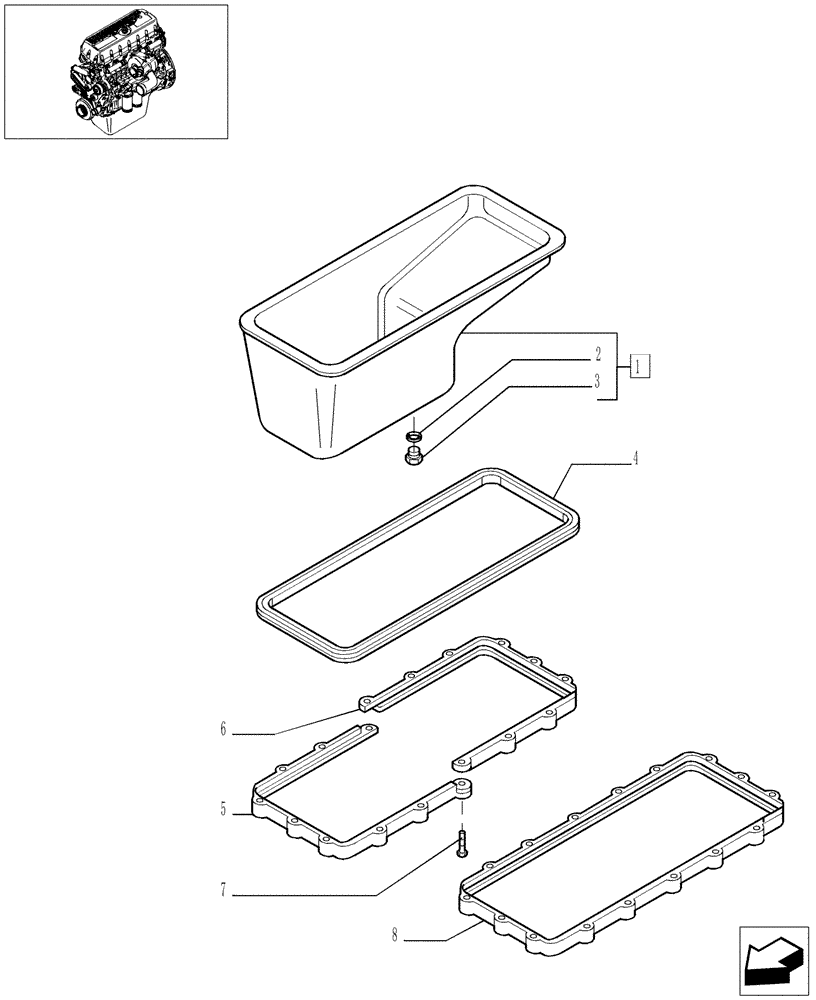

Запчасти Case IH F3BE0684A B002 (0.04.2[01]) - OIL SUMP & RELATED PARTS (504052952)

1

504024778

ENGINE OIL PAN

- ASSY

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22 mm

1шт.

3

10305171

PLUG,M22 x 1.5 x 21

M22 x 1.5

1шт.

4

504024777

GASKET

1шт.

5

99449984

SPACER

1шт.

Up to engine s/n 104597

1шт.

6

99449985

SPACER

1шт.

Up to engine s/n 104597

1шт.

7

2852803

SCREW

M10 x 45

16шт.

8

504276421

SPACER

1шт.

From engine s/n 104598

1шт.
