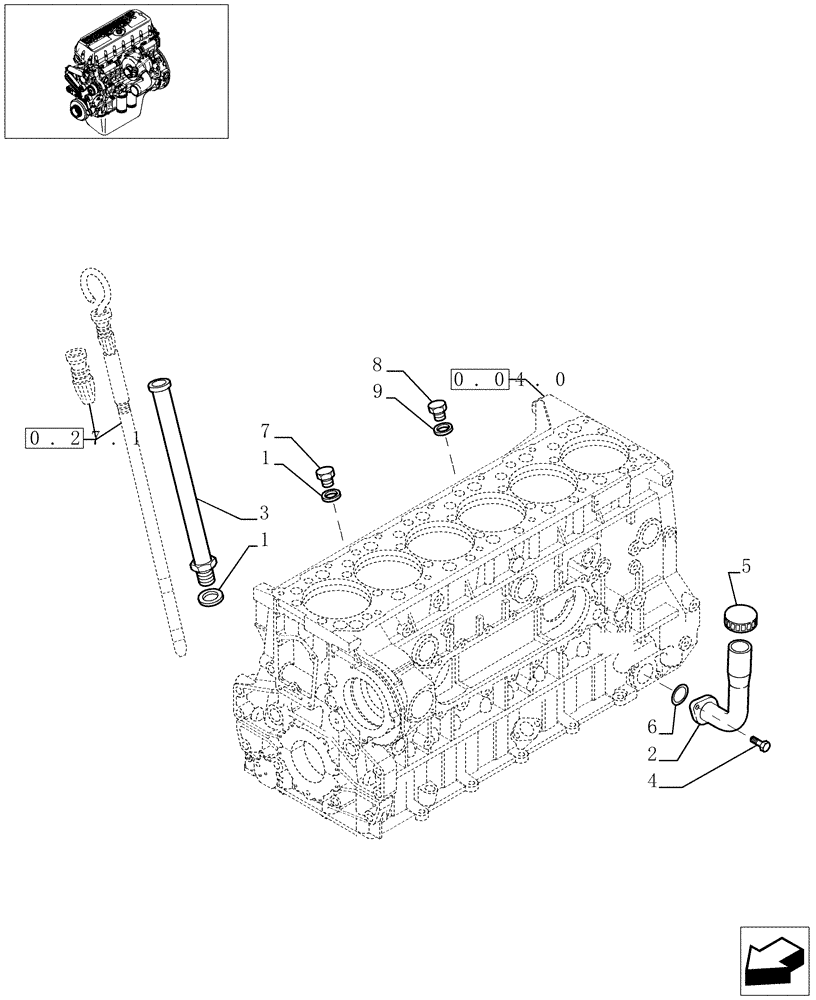

Запчасти Case IH F3BE0684A B002 (0.27.0[01]) - OIL LEVEL CHECK (504069653 - 504040195 - 504055391)

1

4893207

SEALING WASHER,15.5mm ID x 26mm OD x 1.5mm Thk

2шт.

2

504040194

RIGID TUBE

1шт.

3

99471019

PIPE

1шт.

4

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

M8X20 mm

2шт.

5

2852136

CAP,48mm ID x 56mm OD x 18mm W

1шт.

6

2852662

SEALING RING

D=35.5X3.53 mm

1шт.

7

2852496

PLUG,M18 x 1.5

M18X1.5

1шт.

8

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

M12X1.5

1шт.

9

2855325

SEAL

1шт.
