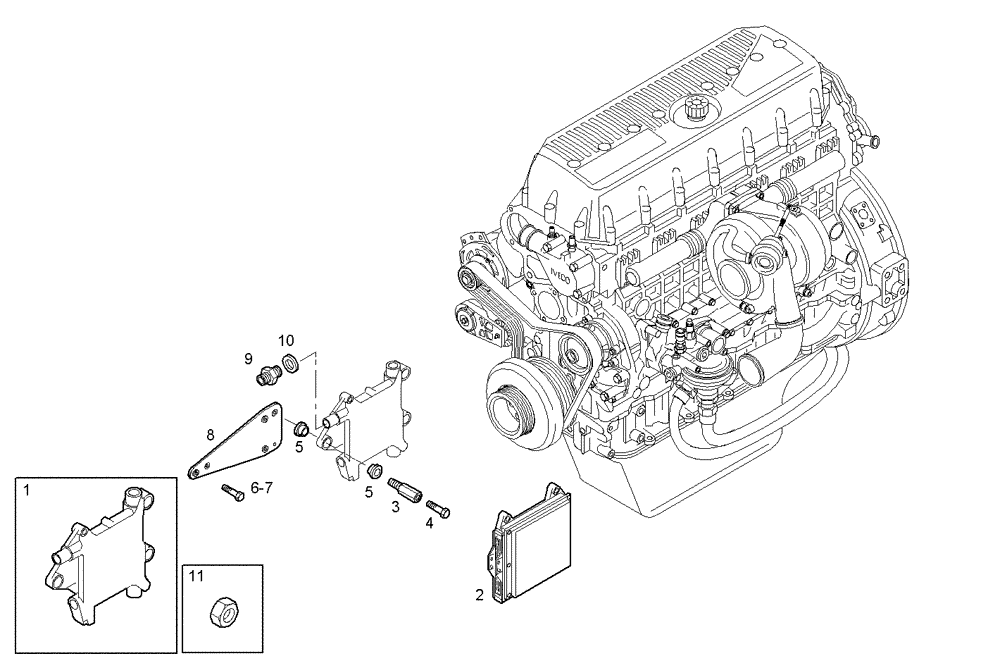

Запчасти Case IH F3BE0684A B002 (1701.021) - ELECTRONIC CONTROL UNIT

1

500371989

SUPPORT

SUPPORT

1шт.

2

500365533

ECU

ELECTR.CONTR.UNIT, E.C.U.

1шт.

3

99475194

SPACER

SPACING BAR

1шт.

4

16586625

BOLT,M8 x 35mm

HEXAGON BOLT, M8X35 MM

4шт.

5

98498817

ISOLATOR

DOWEL

6шт.

6

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

HEXAGON BOLT, M8X1,25X18 MM

2шт.

7

16586825

BOLT,Hex, M8 x 1.25 x 45mm

HEXAGON BOLT, M8X1.25X45 MM

4шт.

8

504079747

BRACKET

RETAINER

1шт.

9

504081274

HYD CONNECTOR

THREADED UNION, M16X1,5 - M18X1,5

2шт.

10

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

2шт.

11

2852197

FLANGE NUT,M6 x 1

HEXAGON NUT, M6

2шт.
