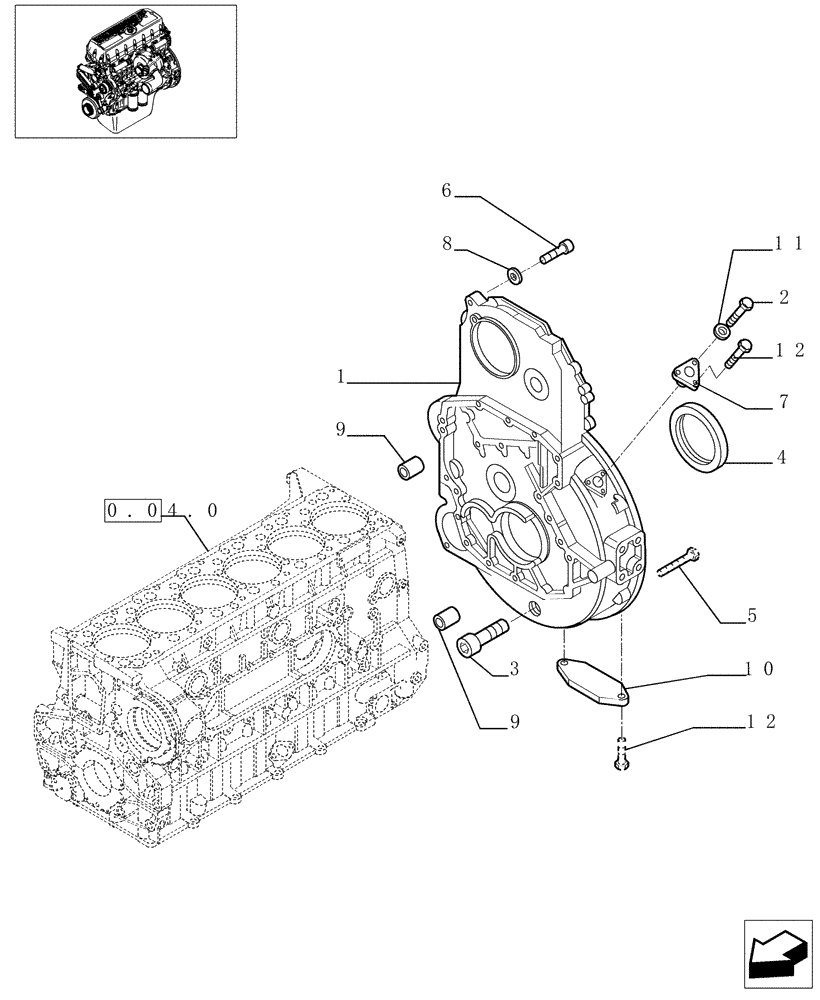

Запчасти Case IH F3BE0684A B001 (0.04.3[01]) - FLYWHEEL CASE (500325116)

1

500324441

COVER

1шт.

2

61315661

BOLT

1шт.

3

16992911

PLUG

M52X2

1шт.

4

40102693

GASKET

1шт.

5

16677934

SCREW,M12 x 1.75 x 35mm

M12X1.75X35 mm

4шт.

5

16593624

SCREW,M12 x 1.75 x 120mm

M12X1.75X120 mm

1шт.

5

99475978

SCREW

2шт.

5

16588824

SCREW,M12 x 1.75 x 70mm

M12X1.75X70 mm

2шт.

5

16593424

SCREW,M12 x 100mm

M12X100 mm

10шт.

6

16675834

SCREW,M10 x 1.5 x 30mm

M10X30 mm

2шт.

7

99472521

COVER

1шт.

8

98474305

SEALING WASHER

D = 10 x 17 x 2.3 mm

2шт.

9

10839810

DOWEL,12mm OD x 18mm L

2шт.

10

4851842

COVER

1шт.

11

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

12

16597924

SCREW,M8 x 14mm

M8X14 mm

4шт.
