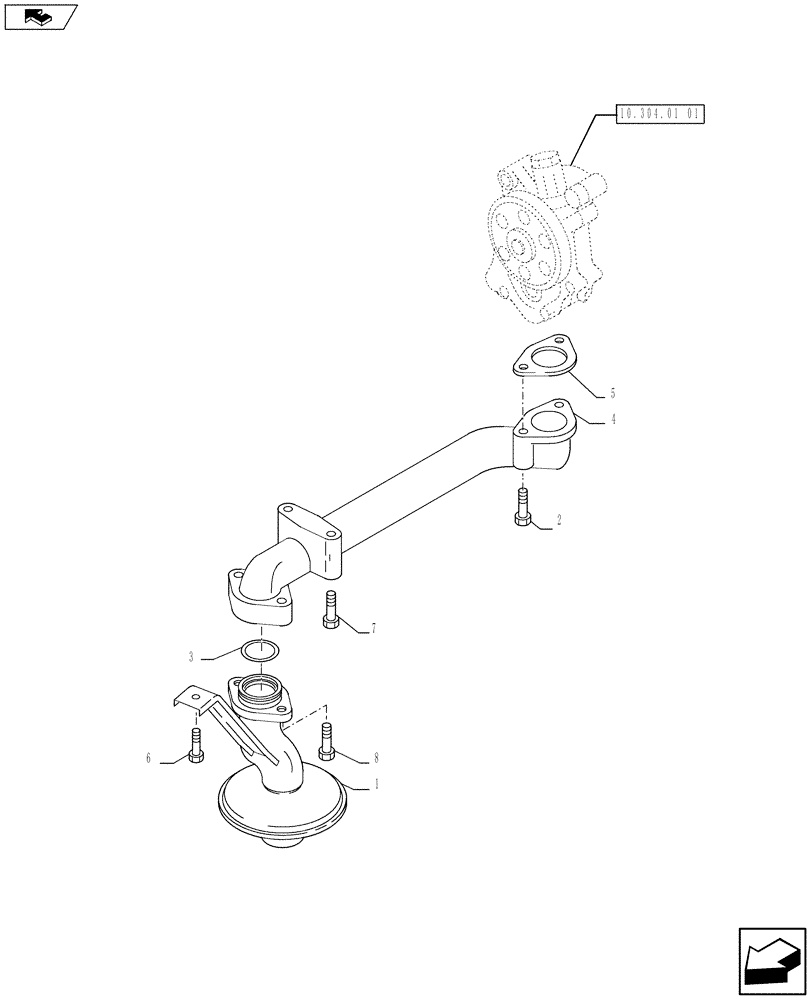

Запчасти Case IH F3AFE613A A005 (10.304.05) - OIL PUMP PIPING (500387388) (10) - ENGINE

1

500361099

RIGID TUBE

1шт.

2

16586525

BOLT,Hex, M8 x 30mm, Cl 8.8

M8X1.5X13 mm

2шт.

3

70925919

O-RING,-222, Cl 7, 1.484" ID x .139" Thk

D=37.69X3.53 mm

1шт.

4

99468495

RIGID TUBE

1шт.

5

500343518

GASKET

1шт.

6

16586225

BOLT,M8 x 16mm

M8X55 mm

1шт.

7

16592325

BOLT,M8 x 60mm

M8 x 40

2шт.

8

16592225

BOLT,M8 x 55mm

M8X30 mm

2шт.
