(55.414.01) - MOTOR SENSORS (504138293)

Запчасти Case IH F3AFE613A A003 (55.414.01) - MOTOR SENSORS (504138293) (55) - ELECTRICAL SYSTEMS

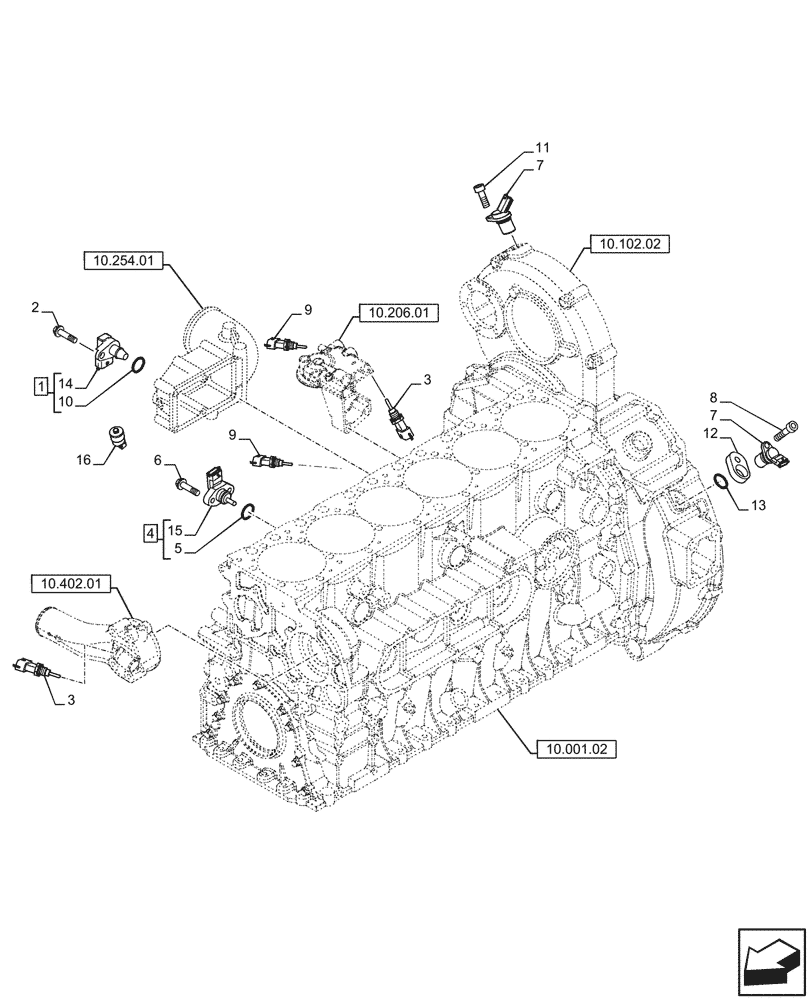

Схема запчастей Case IH F3AFE613A A003 - (55.414.01) - MOTOR SENSORS (504138293) (55) - ELECTRICAL SYSTEMS
10.001.02
2
13
8
7
16
9
10
7
9
11
5
14
3
1
4
3
15
6
12
10.206.01
10.102.02
10.402.01
10.254.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504073323

SENSOR

Air Temperature / Pressure, ASSY, Incl 10, 14

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

1шт.

3

82017881

SENSOR

Coolant Temperature

2шт.

4

4890193

SENSOR

Oil Pressure / Temperature, ASSY, Incl 5, 15

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

7

504096645

TRANSMITTER

Camshaft & Crankshaft

2шт.

8

16689024

SCREW,M16 x 12mm

2шт.

9

82017881

SENSOR

2шт.

9

500346074

SENDER UNIT

1шт.

10

42546555

O-RING

1шт.

11

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

1шт.

12

504163664

SPACER

1шт.

13

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Air Temperature / Pressure sensor, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Oil Pressure / Temperature sensor, Incl in 4

1шт.

16

279492A1

RESTRICTION SWITCH

1шт.

Выбрано товаров: 17
