(10.402.02) - WATER PUMP & RELATED PARTS (504154377)

Запчасти Case IH F3AFE613A A002 (10.402.02) - WATER PUMP & RELATED PARTS (504154377) (10) - ENGINE

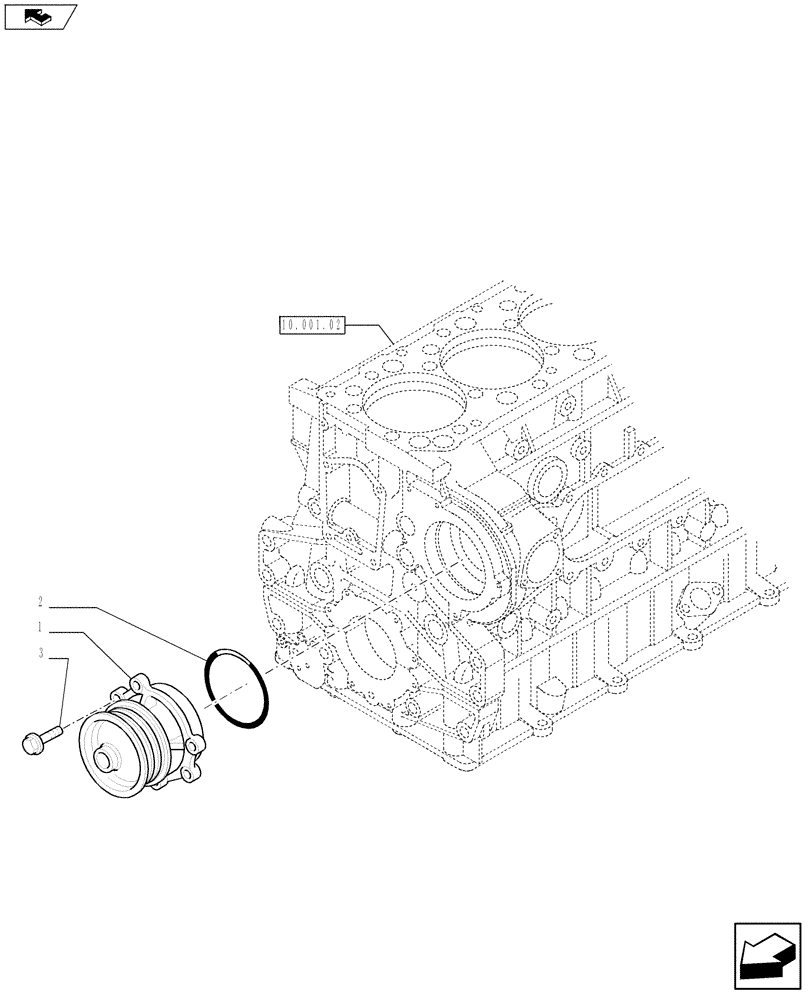

Схема запчастей Case IH F3AFE613A A002 - (10.402.02) - WATER PUMP & RELATED PARTS (504154377) (10) - ENGINE
10.001.02
3
home
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8041947

WATER PUMP

1шт.

8041947R

REMAN-WATER PUMP

CR8080A4, CR8090A4 Both TIER4 (12/11-), F3AFE613A*A002 ENGINE 5801382794 - 84169595

1шт.

8041947C

CORE-WATER PUMP

Return Number

1шт.

2

4897111

O-RING,0.139" Thk x 4.719" ID

D = 120.24 mm

1шт.

3

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

M8 X 1.25 X 20

4шт.

Выбрано товаров: 5
