(10.206.01) - FUEL FILTER & RELATED PARTS (5801504388 - 5801380869)

Запчасти Case IH F3AFE613A A002 (10.206.01) - FUEL FILTER & RELATED PARTS (5801504388 - 5801380869) (10) - ENGINE

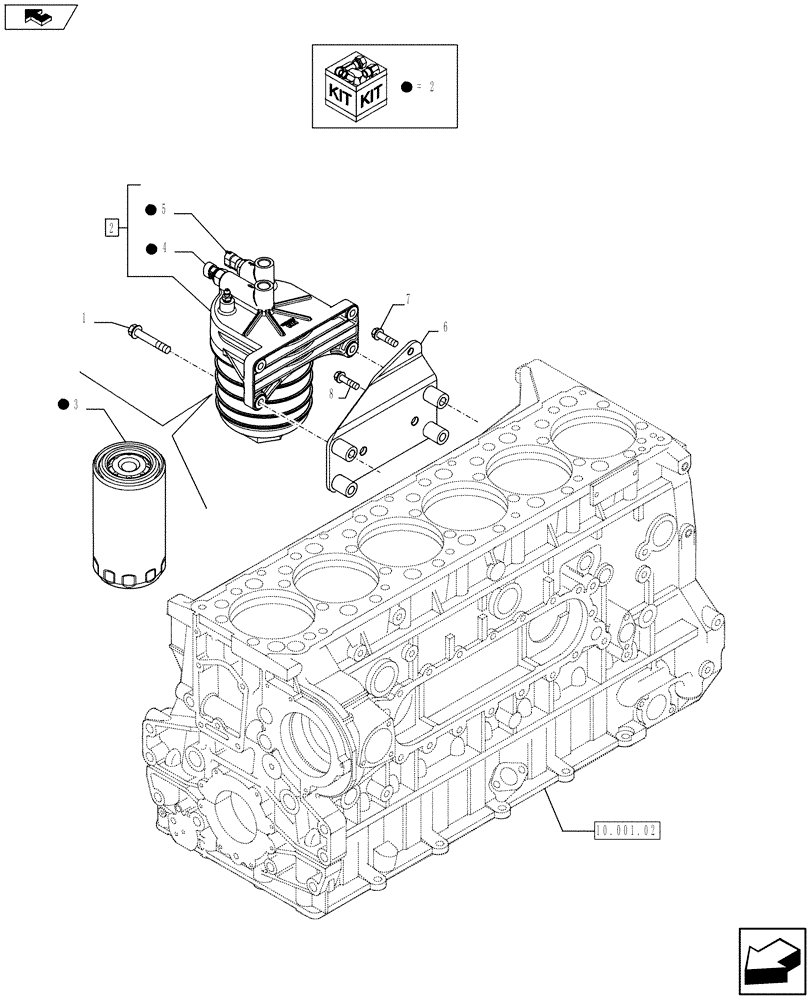

Схема запчастей Case IH F3AFE613A A002 - (10.206.01) - FUEL FILTER & RELATED PARTS (5801504388 - 5801380869) (10) - ENGINE
5
1
4
7
2
10.001.02
2
2
6
2
2
2
3
8
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16673835

BOLT,Hex, M8 x 30mm

M8 x 30

4шт.

2

5801465187

FILTER ASSY

Contains Ref.4, 5

1шт.

3

5801439820

FUEL FILTER

Cartridge

1шт.

4

500346074

SENDER UNIT

1шт.

5

82017881

SENSOR

Water Pressure and Temperature

1шт.

6

5801380872

SUPPORT

1шт.

7

16585925

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

8

16587625

BOLT,M10 x 50mm

2шт.
