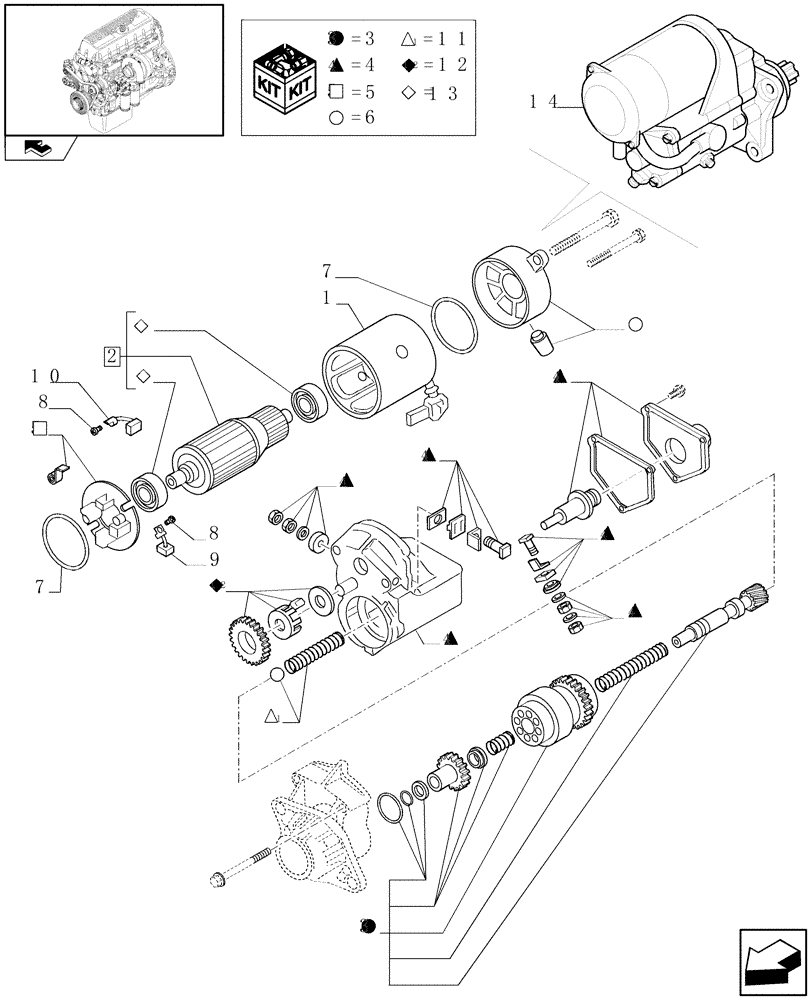

Запчасти Case IH F3AE0684P E909 (0.36.0/ A) - STARTER MOTOR - COMPONENTS (99486046)

1

42471438

STATOR

1шт.

2

42471439

ARMATURE

- ASSY

1шт.

3

42471440

KIT, STARTER MTR REP

1шт.

4

42471441

KIT, STARTER MTR REP

1шт.

5

42471442

KIT, STARTER MTR REP

1шт.

6

42471443

HOUSING

1шт.

7

42471444

O-RING

2шт.

8

42471445

SCREW

M5

4шт.

9

42471446

BRUSH, COMMUTATOR

BRUSH

2шт.

10

42471447

BRUSH, COMMUTATOR

BRUSH

2шт.

11

42471378

KIT, STARTER MTR REP

1шт.

12

42471450

KIT, STARTER MTR REP

1шт.

13

42471451

KIT, STARTER MTR REP

1шт.

14

99486046

STARTER MOTOR

- ASSY

1шт.

14

99486046R

REMAN-STARTER

Eng. P/N's 504334635 & 87486949

1шт.

14

99486046C

CORE-STARTER

Return Number

1шт.
