Запчасти Case IH F3AE0684P E906 (1250.016) - TIMING PARTS

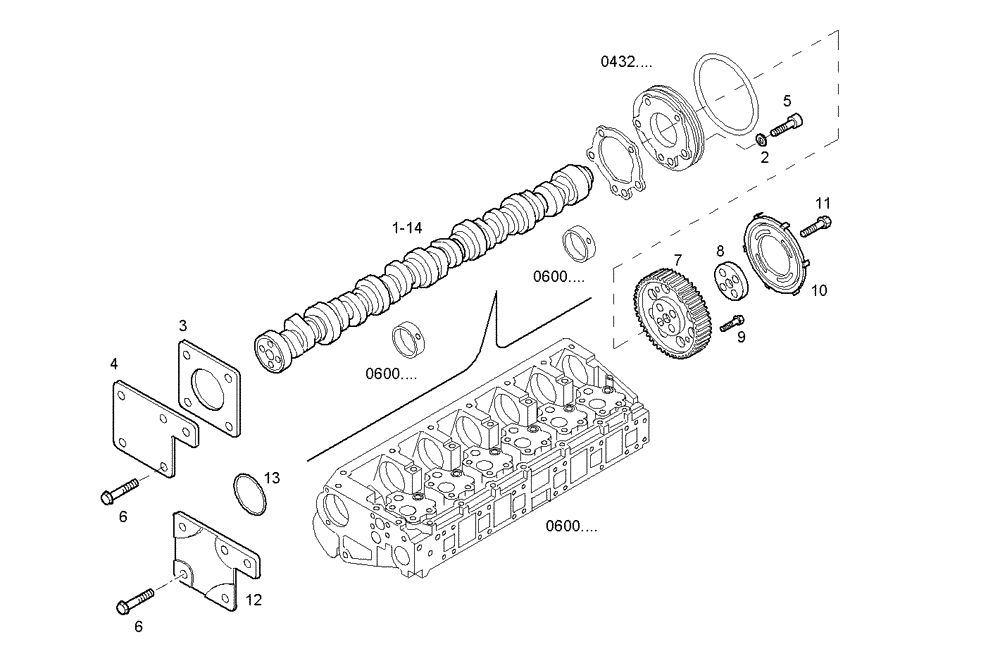

Схема запчастей Case IH F3AE0684P E906 - (1250.016) - TIMING PARTS

Артикул

Название

Примечание

Количество

1

504092824

CAMSHAFT

CAMSHAFT, UP TO # 82158

1шт.

2

17096824

LOCK WASHER

WASHER, dia=8,40X15 MM

5шт.

3

500370033

GASKET

FLAT ENGINE GASKET, UP TO # 85474

1шт.

4

500370032

COVER

COVER, UP TO # 85474

1шт.

5

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

CYLIND-HEAD SCREW, M8X25 MM

5шт.

6

16587125

SCREW,M10

HEXAGON BOLT, M10X25 MM

4шт.

7

99450035

GEAR

CAMSHAFT PINION

1шт.

8

98496024

SPACER

SPACING BAR

1шт.

9

99431774

BOLT

BIG-END BOLT

4шт.

10

500336396

PLATE

PLATE

1шт.

11

500397562

BOLT

HEXAGON BOLT, M6X1X22 MM

4шт.

12

504204255

COVER

COVER, FROM # 85475

1шт.

13

14465381

O-RING,3.109" ID x 3.387" OD x 0.139"

O-RING, dia=78,97X3,53 MM, FROM # 85475

1шт.

14

504204063

CAMSHAFT

CAMSHAFT, FROM # 82159

1шт.

Выбрано товаров: 14
