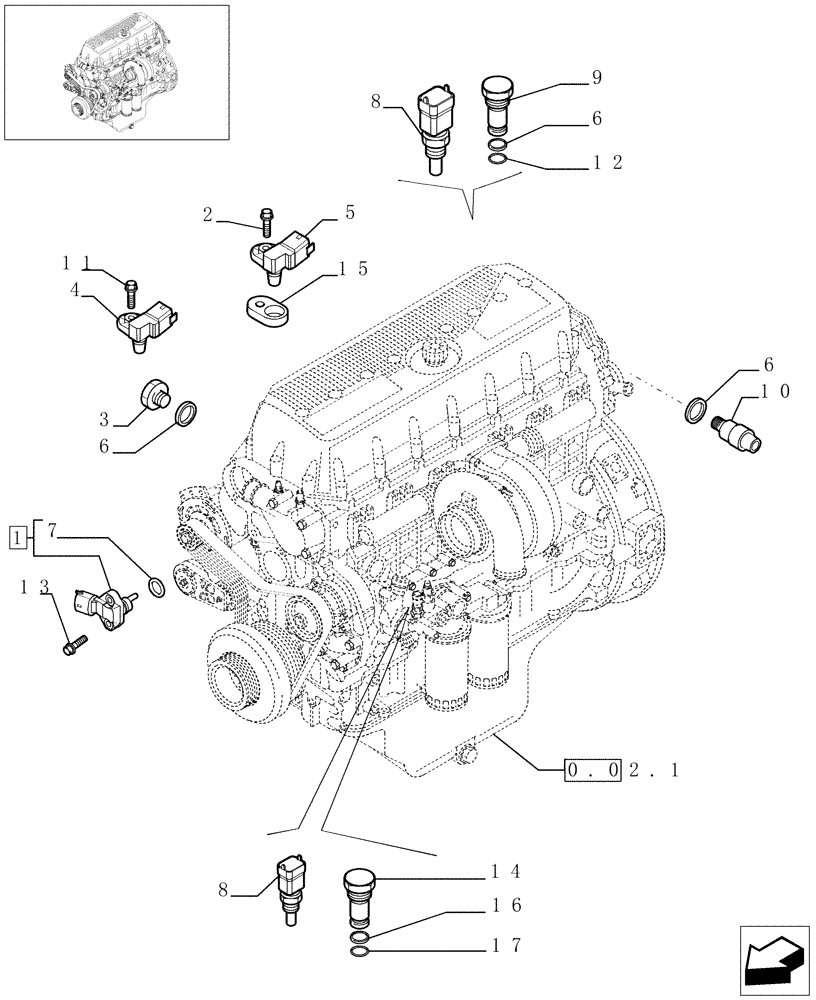

Запчасти Case IH F3AE0684P E906 (0.17.1[01]) - MOTOR SENSORS (504138293 - 504138693)

1

4890193

SENSOR

Oil Pressure &Temperature

1шт.

2

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

M6 x 25

1шт.

3

10300714

PLUG,M16 x 1.5 x 14

M16 x 1.5

1шт.

3

16887515

PLUG

M12 x 1.5

1шт.

3

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

2шт.

4

2852821

SENSOR

Air Temperature / Pressure, 4 wire

1шт.

5

504096645

TRANSMITTER

Camshaft & Crankshaft, 2 wire

1шт.

6

99489019

SEALING WASHER

16X24X1,5

1шт.

6

2855325

SEAL

12X20X1,5

1шт.

6

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

14X22X1,5

3шт.

7

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

8

82017881

SENSOR

Coolant Temperature

2шт.

9

504084571

PLUG

1шт.

10

500346371

SENSOR

Plugged Fuel Filter Switch

1шт.

11

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

12

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

M7.65 x 1.78

1шт.

13

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

14

500337200

PLUG

3/4"

1шт.

15

504163664

SPACER

1шт.

16

500337199

O-RING

1шт.

17

14453181

O-RING,0.489" ID x 0.07" Width

M12.42 x 1.78

1шт.
