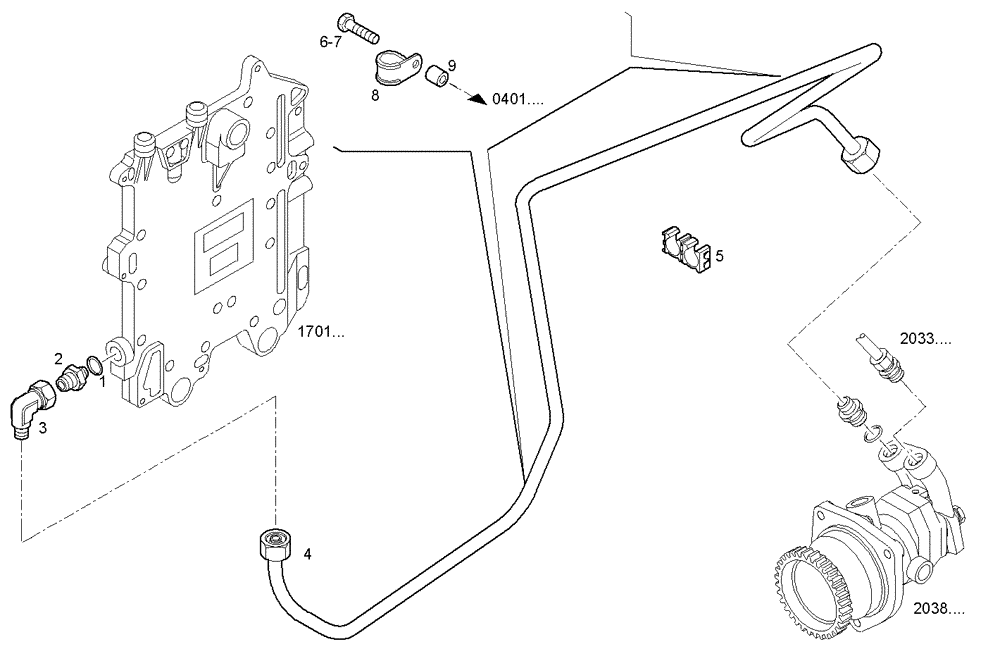

Запчасти Case IH F3AE0684P E905 (2031.002) - FUEL LINES - INLET TO FUEL PUMP

1

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

2

504081274

HYD CONNECTOR

THREADED UNION, M16X1,5 - M18X1,5

1шт.

3

16504114

ELBOW

ELBOW COUPLING, M18X1,5

1шт.

4

504132108

TUBE

FUEL LINE

1шт.

5

500306941

CLAMP

SPRING CLAMP

2шт.

6

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

2шт.

7

2852323

SCREW,M8 x 1.25 x 14mm

HEXAGON BOLT, M8X14 MM

1шт.

8

17316592

COLLAR

PIPE CLIP

3шт.

9

13605711

SPACER

SPACER, dia=10X8,5X18 MM

2шт.
