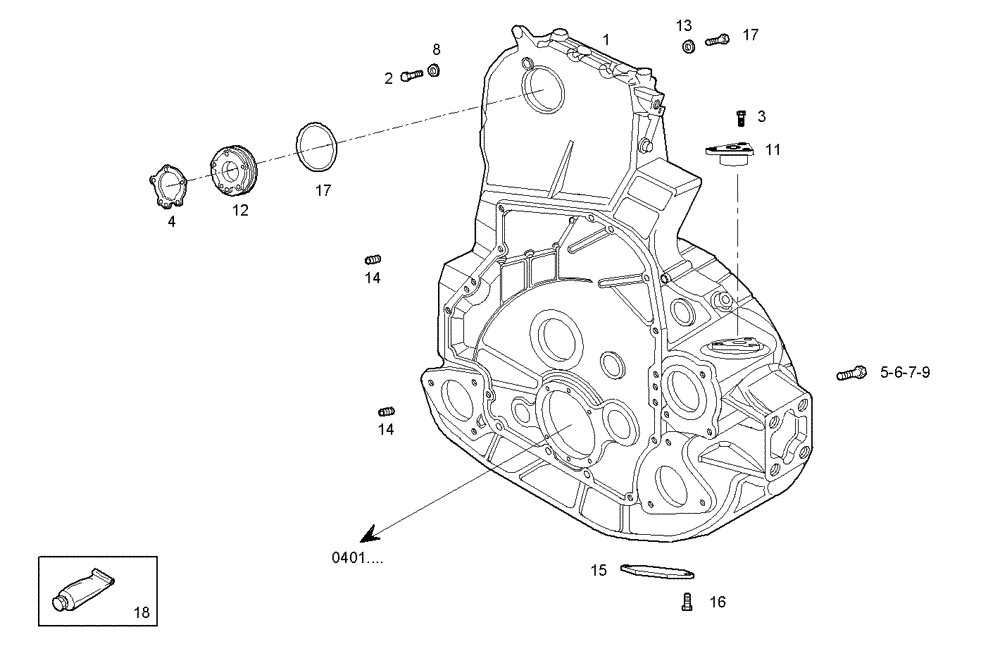

Запчасти Case IH F3AE0684N E907 (0432.034) - REAR C.CASE COVER

1

504178992

HOUSING

TIMINGGEAR HOUSIN

1шт.

2

504087515

SCREW

SHEAR SCREW

1шт.

3

16673735

BOLT,Hex, M8 x 1.25 x 25mm

HEXAGON BOLT, M8X25 MM

1шт.

4

99448739

GASKET

FLAT ENGINE GASKET

1шт.

5

16593425

BOLT,M12 x 100mm

HEXAGON BOLT, M12X100 MM

10шт.

6

16588125

BOLT,M12 x 1.75 x 35mm

HEXAGON BOLT, M12X35 MM

4шт.

7

16593625

BOLT,M12 x 1.75 x 120mm

HEXAGON BOLT, M12X120 MM

1шт.

8

16892924

WASHER

WASHER

1шт.

9

16588825

BOLT,M12 x 70mm

HEXAGON BOLT, M12X1,25X70 MM

2шт.

10

16675835

SCREW,M10 x 30mm

HEXAGON BOLT, M10X30 MM

2шт.

11

99472521

COVER

CONNECTING PLATE

1шт.

12

500322294

PLATE

SPACER RING

1шт.

13

98474305

SEALING WASHER

WASHER, dia=10X17 MM SP=2,3

2шт.

14

10839810

DOWEL,12mm OD x 18mm L

DOWEL PIN

2шт.

15

4851842

COVER

COVER

1шт.

16

2852323

SCREW,M8 x 1.25 x 14mm

HEXAGON BOLT, M8X14 MM

2шт.

17

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

O-RING, dia=126,59 MM SP=3,53 MM

1шт.

18

2995644

SEALANT

ADHESIVE/STICKER

1шт.
