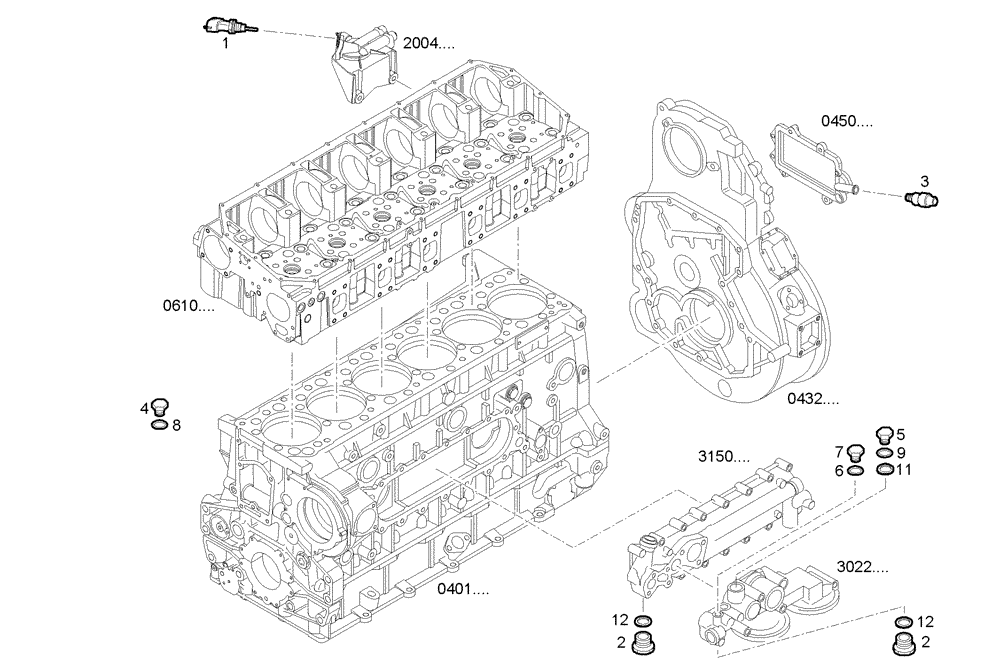

Запчасти Case IH F3AE0684N E907 (1712.025) - SENSORS [FROM # 99285]

1

500346074

SENDER UNIT

TRANSMITTER, Pressure

1шт.

2

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

LOCK PLUG, M14X1,5

2шт.

3

500346371

SENSOR

CHOCKED FILTER INDIC., FILTRO BLOW-BY

1шт.

4

16887515

PLUG

THREADED PLUG

1шт.

5

500337200

PLUG

THREADED PLUG

1шт.

6

99489019

SEALING WASHER

WASHER, dia=16X24 MM SP=1,5 MM

1шт.

7

10300714

PLUG,M16 x 1.5 x 14

THREADED PLUG, M16X1,5

1шт.

8

14453181

O-RING,0.489" ID x 0.07" Width

O-RING

1шт.

9

500337199

O-RING

O-RING

1шт.

11

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

SEAL GASKET, dia=12X20 MM SP=1,5 MM

1шт.

12

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

SEAL GASKET, dia=14X22 MM SP=1,5 MM

3шт.
